7 August 2010
Author: Giorgos Lazaridis
Men Of War Game Console





Worklog - Finishing the console (Octomber 24 2010)

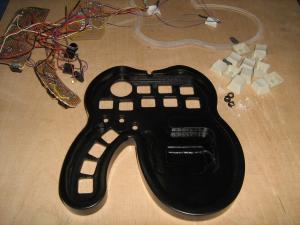

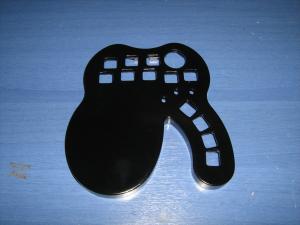

I just received the MDF from the painter. I was not 100% satisfied, because there was a slight problem, but the overall finish was smooth and shiny. What i noticed and is good to share with you, is that the color was thick enough to make the holes smaller! For example, the LED holes and the button holes are now quite smaller. I think they are about half a millimeter smaller. Anyway, here is the console housing:





With no further ado, i began assembling the console:

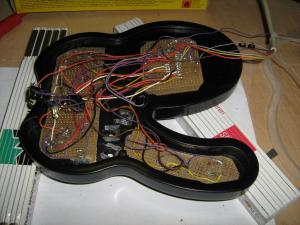

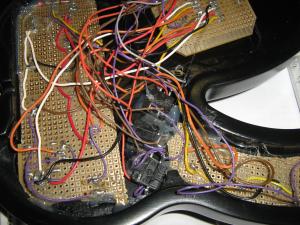

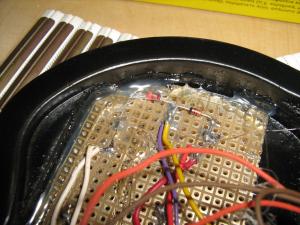

I had all the PCBs made, the PICs programmed and the wirings soldered I put the PCBs in place. Due to the paint, the PCBs had to be slightly forced to fit With a few hot melt glue, i secured the PCBs in place Then, i secured the LED pushbuttons in place again with hot meld glue.


Finishing the console...

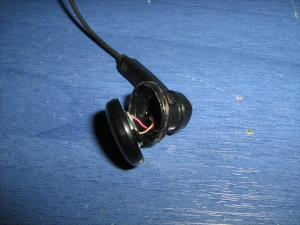

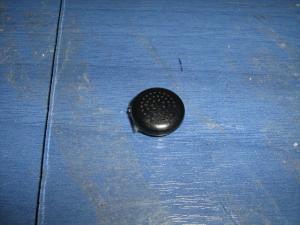

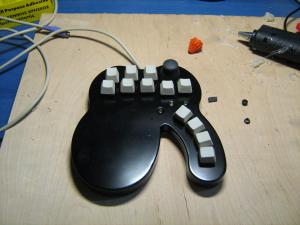

I closed the bottom side with the acrylic glass that carries the 3 blue LEDs And i put all the keys and the joystick tops I took an old hand free cord And i removed the speaker cover

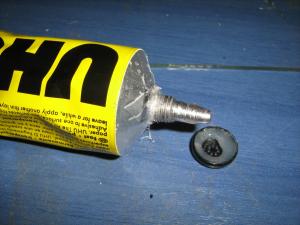

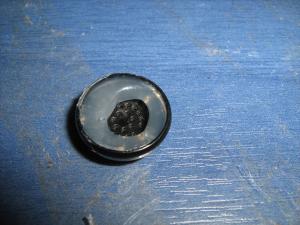

I dipped just a few hot-melt glue inside the cover near the perimeter And i put it to cool down in a clean glass surface This way i had a smooth flat surface near the perimeter And that is where i dipped a small amount of general purpose glue

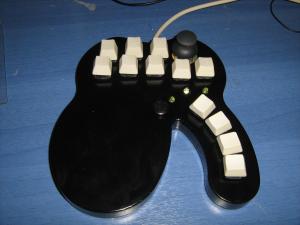

I used this plastic cover to cover the buzzer hole that i made near the LEDs. Look at the final result. Click to enlarge (as always):







And what about the Blue LED Effect?

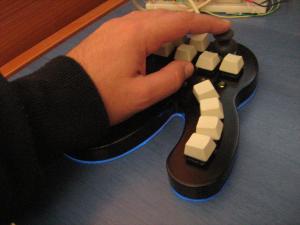

Oh yes, that one... Remember the 3 blue LEDs that are inside the bottom cover made of transparent acrylic glass? Well, here is the effect:


No button pressed A Button is pressed


Whenever a button is pressed or a move is done with the joystick, the LEDs becomes brighter. When the button or joystick is released, the LEDs dims slowly back to the original state.




Thanks for following!

So, this project is ready! Thank you for following. Check out the presentation section of this project, where i have some nice videos.

Till next time...
