7 August 2010
Author: Giorgos Lazaridis
Men Of War Game Console





Worklog - The housing (August 20 2010)

Not many times do i concern that much about the housing of a project. Yet, this is a special occasion. I do not really know why i consider this a "special occasion", but i have spent a lot of time to make a nice curvy sweet housing for my console. Maybe because i am a computer freak and i do have this "aesthetic" of game controllers and stuff... Any ways. Here is the way that my "MOW Glove" -as i call it- evolved:


A trip of 1000 miles begins with a first step... More curvy with less buttons A more "female" outlook
That female outlook looked like a frog... This is the final outlook that i will make. Added the last button and the "shift"

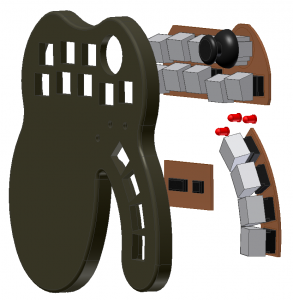

After having decide of the housing's outline, i had to put the entrails inside it. To see if everything fits, i had to draw a 3D model:

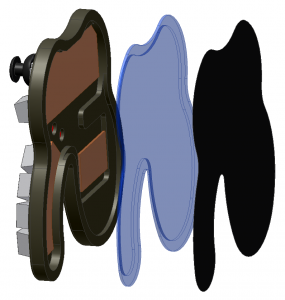

This is the final product that i wish to make The housing is made of MDF. The cover is transparent plexi-glass, with a opaque black sticker underneath. The 3 PCBs (top buttons, thumb buttons and 2 PICs) must be cut to specific shapes to fit in the pockets

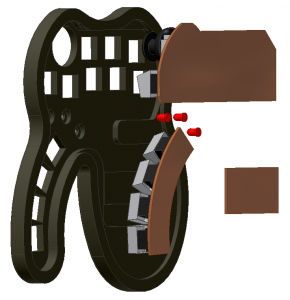

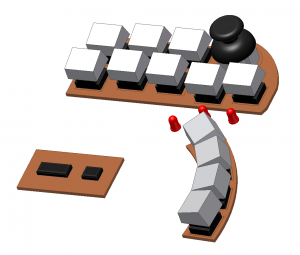

These are the PCBs from the front side. And here are the PCBs alone The internal side of the wooden housing has some weird pockets and grooves. Not a problem for a CNC though...


You may wonder (or you may NOT wonder) why i have a transparent plexi-glass for bottom, and then i cover it with an opaque sticker. I want to make an effect with blue LEDs. I will put some inside the housing, so that the acrylic glass will shine at the bottom side. The acrylic glass that will be visible at that point will be about 1.5mm thick. I hope this will make a nice effect... We will see. Now. On to the CNC!




Turn on the CNC mate!

Again to this friend of mine, Christos Polidorou. He has this wonderful piece of woodworking CNC, and i am allowed to use it at will. So, i began making the hosing...

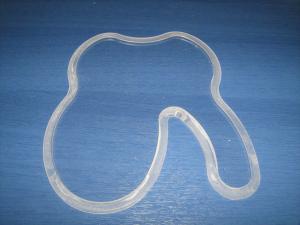

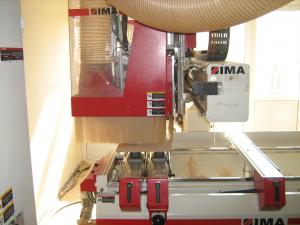

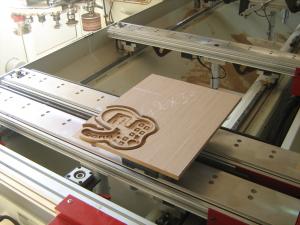

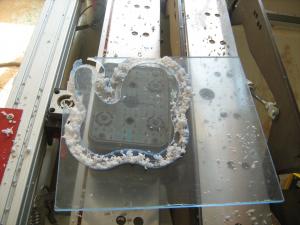

Thats a really nice machine This is the first housing i made. It is 17mm thick. And this is the cover made of transparent acrylic glass.




Do you notice something strange? Well, neither did i... But the housing is mirrored... The first try was a complete failure, as i forgot to mirror the housing during machining, so it is good for a left-handed person but not for me. Anyway, i re-made the housing on a 16mm MDF:

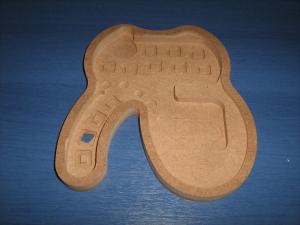

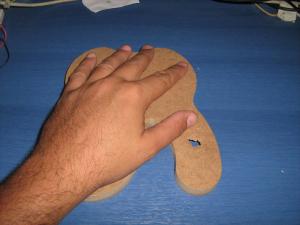

This is the final version of the housing made of 16mm MDF This will be the top side And this is my left hand :D... Now its orientation is fine The bottom cover needs of no change

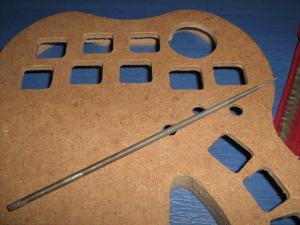

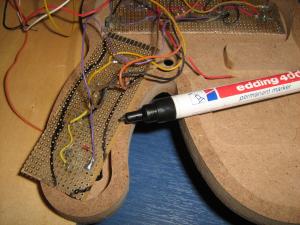

With a small file i removed the MDF remainings and cleaned the openings for the buttons the joystick and the LEDs Then i marked the first PCB with a marker And the second PCB as well... With the grinder, i removed the pieces of the 2 PCBs, so that they fit in their pockets

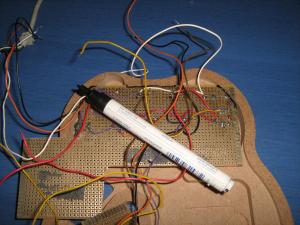

Its beginning to look like the console i designed...:





But still has a lot of work...
