Men Of War Game Console





Worklog - From the breadboard to a PCB (Octomber 3 2010)

I will not make a PCB, instead i will use a pre-drilled proto board for this. If i will make a PCB, i will make a complete one with all the buttons and the joystick, having the shape of the controller. Until then, i will test it on a simple pre-drilled PCB...

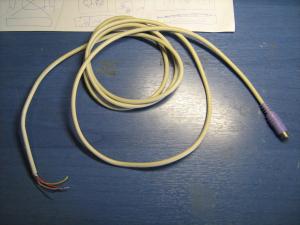

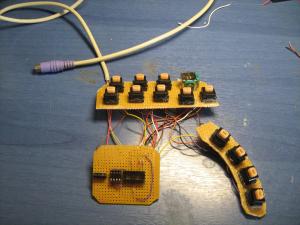

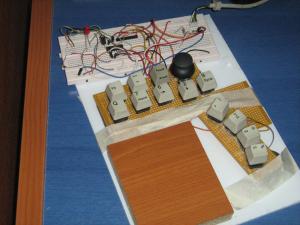

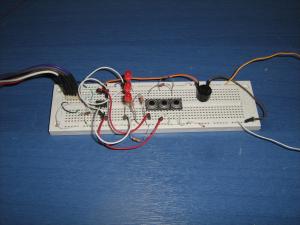

I will use this old PS2 wire which was ripped from a cannibalized keyboard And i wiil turn this breadboard circuit (the controller)... ...and this one (the timer)... ...into this.

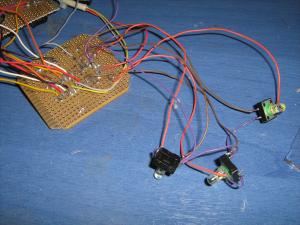

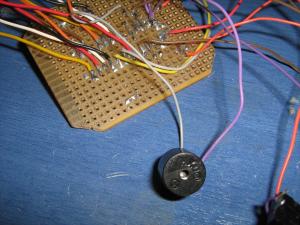

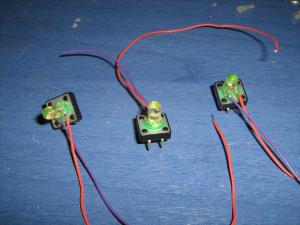

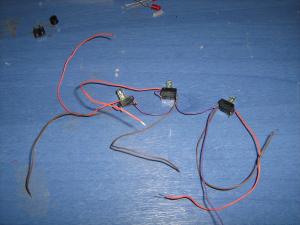

Then, i made 3 LED pushbuttons, as i have described in my previous project... I connected these buttons together and then i interfaced them onto the PCB Finally, i connected the buzzer for the timer. The PCB is ready




Time to fix the buttons

Beginning with the LED pushbuttons:

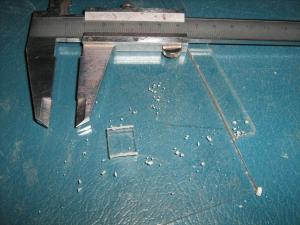

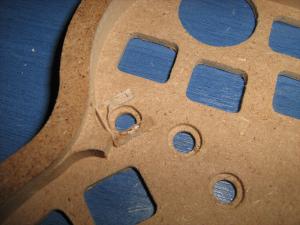

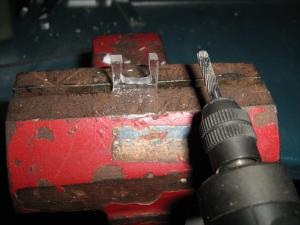

I cut a plastic piece, about 2x2cm in size. And with the router, i routed a U inside This is supposed to be the spacer for the LED buttons

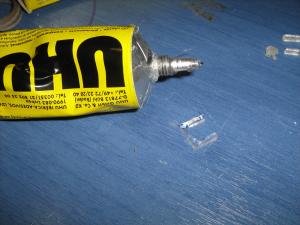

Just a drop of general purpose glue is enough I fixed it onto the backside of the housing, in the center of an LED pushbutton hole I did this for all 3 LED pushbuttons

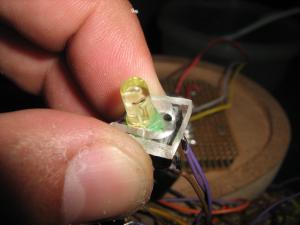

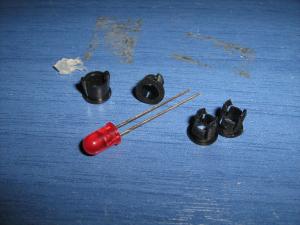

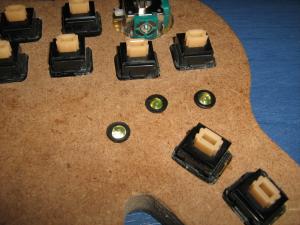

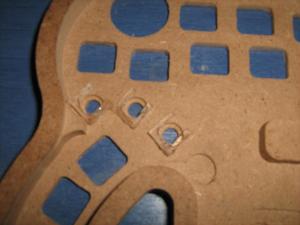

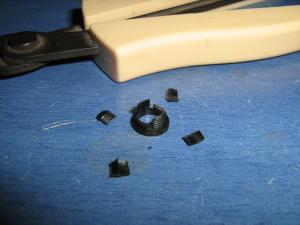

Then i took 4 5mm LED panel bases With the cutter, i removed the fixing keys and i shortened them a little bit After inserting the LED pushbuttons to the backside, i placed the LED covers in front...

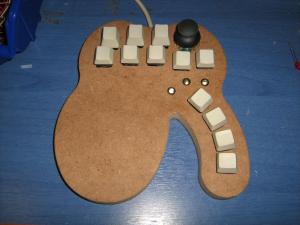

Looking good, isn't it?







Finally, the back cover

First, i had to fix the edges

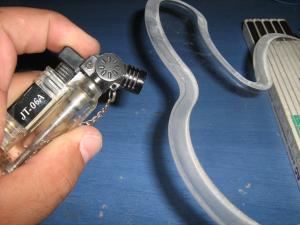

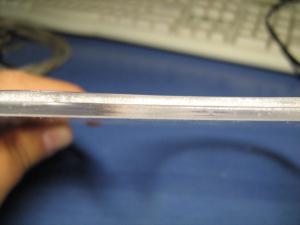

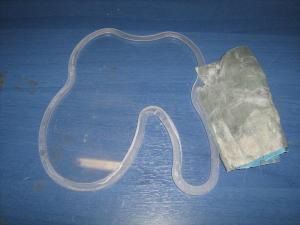

With a very fine sand paper, i sanded the edges of the cover that are going to be visible Using this mini-torch, i "burned" the edges so that they will become clear again This is the result that i am looking for


Remember the reason why i use a transparent cover instead of an opaque? The reason is actually that i want to light the edges and maybe i will manage to have a nice effect...

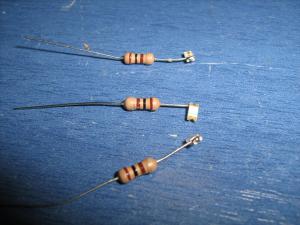

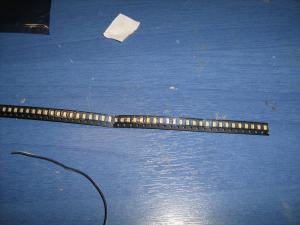

I got myself some high brightness SMD blue LEDs for the lighting purposes I soldered a resistor to the anode of three of them And then i connected the cathodes together with a long wire

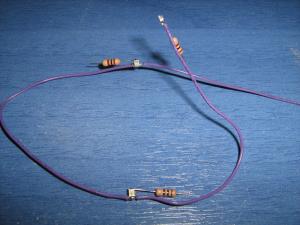

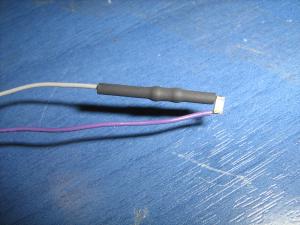

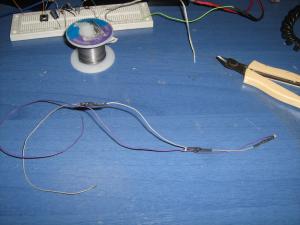

One wire is connected to the other side of the resistor And using a heat-shrink tube i insulated the leads I did this for all 3 LEDs, and here is my LED strip!


But how am i going to light the edges of the cover? Where should i place the LEDs? How deep? Well, trial and error is the answer...

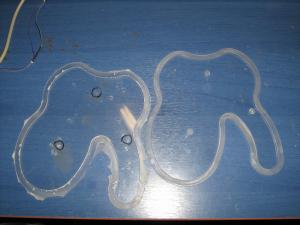

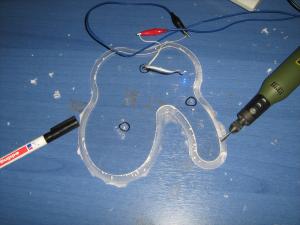

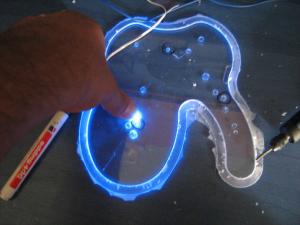

I had another piece made, that had gone somehow wrong, which i used for my tests... After several drillings in different positions with different depths... I found the 3 best positions to place my LEDs, and i drilled the cover accordingly
