7 August 2010
Author: Giorgos Lazaridis
Men Of War Game Console





Worklog - The electronic staff (August 7 2010)

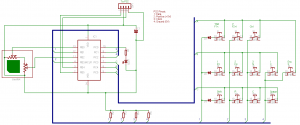

I will use the PIC 16F526 for this project. The reason i picked this PIC and not the powerful 16F88, is clearly the challenge! This PIC is ridiculously underpowered. It has just 1K of memory, with 256 bytes CALL limit (!!!) and a tiny 2-positions stack. I had to drain it to the last drop to make it work, but finally it did work! Here is the schematic diagram:





As you see, i interface the 12 buttons with a 3 by 4 matrix. You may also have notice the diodes D1 through D3 connected to the buttons S1, S4 and S9. Why? Well, S9 is the shift key, which means that it will be pressed simultaneously with another key. This can result in a ghosting or masking problem. So, just for this column, i use diodes to avoid this. If you do not know what the ghosting or masking problem is, you can read my article about the key matrices.




Bill Of Materials
Resistors
R1Resistor 330 Ohm 1/4 Watt 5% Carbon Film
R2-5Resistor 10 KOhm 1/4 Watt 5% Carbon Film
Capacitors
C141 uF 16V Electrolytic capacitor
Semiconductors
LED1LED 3mm red
D1-31N4148 Switching Diode
Integrated Circuits
IC1PIC16F526 Microcontroller




Preparations for Test-Drive

As the circuit is quite simple, i made it on a breadboard for test before transferring onto the PCB.

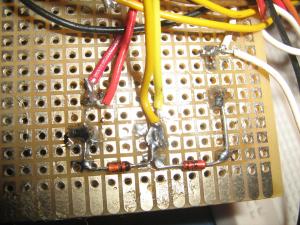

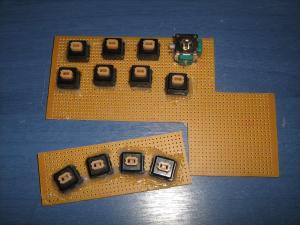

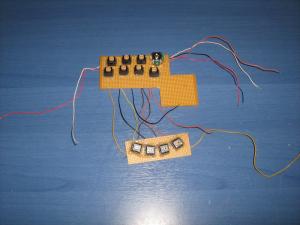

I cut the PCB in 2 with a saw And soldered the matrix No ghosts and phantoms! I soldered the diodes for the first column. Almost ready for the test... What it lacks is the firmware




The firmware

So, here is the first firmware of the PIC for you to recompile and upload...

Version 1.2 - 25 August 2010
Changelog:
  • [Change] Changed the "ESC" sortcut into "Numpad +" shortcut to reload weapons.

  •  Men Of War game console - Assembly listing - V1.2

     Men Of War game console - HEX file - V1.2


    Some older versions of the firmware:
    Version 1.1 - 24 August 2010
    Changelog:
  • [Bugfix] Added 100msec delay when due to joystick move (and only) the controller should send CTRL key-down. The game could not follow the controller's speed and had to slow it down a little bit.

  •  Men Of War game console - Assembly listing - V1.1

     Men Of War game console - HEX file - V1.1


    This is the very first:
     Men Of War game console - Assembly listing - V1.0

     Men Of War game console - HEX file - V1.0



    The first Test-Drive

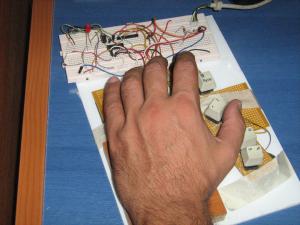

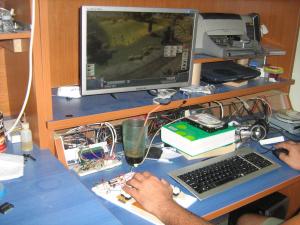

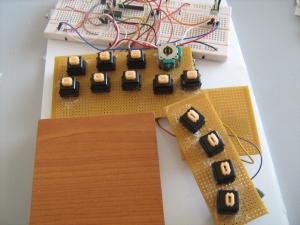

    With no further ado, i taped all the parts on a board for test And with hands-on-console... ...i successfully played my first MOW using the console!


    First impressions??? I should have make this console a lot time ago, since i began playing the game! And by the way, the joystick works perfect! I played also "Only Tanks" (which is boring), and i direct-controlled all my tanks with 100% success. I use grenades and staff much more easier. More important is the way that i control my artillery. I have the artillery in groups, 1 through 3. I select it with it's number, i rotate, and i direct control it very easy, without even taking my eyes from the screen to search for the '1' 'R' and the 'Ctrl'...
