24 May 2010
Author: Giorgos Lazaridis
Instant Cold Coffee Machine




Worklog - Heading for the first test (May 23 2011)

So, i have almost everything needed to run a first test. All i have to do is put them together. First, i have to get some kind of temporary water supply...


I put a T water connection between the water supply and the sink. I also added a ball valve. Then, i connected 10 meters of water hose from the ball valve to the input of an electromagnetic valve I connected the output of the e/m valve to the input of the flow counter. A hose from the output of the flow counter is mounted onto the shaker.


After the water supply, i added the power supply. I will use 2 different supplies, one with 3.3, 5 and 12 volts for the loads (motors, valves, LEDs etc), and one for the low power electronics (sensors, motherboard etc).

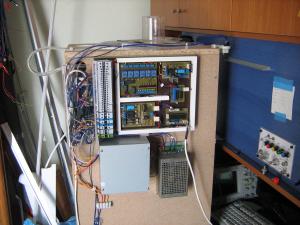

I mounted the motherboard on the back of the machine Then i got an old PC PSU and opened it... ...and i removed all the entrails

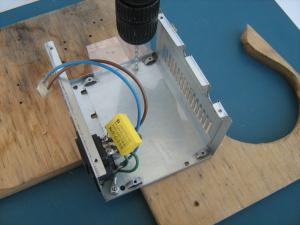

After cleaning and drilling the base of the PSU... ...I screwed it under the motherboard I covered the PSU and i screwed another 5V PSU
