I designed all 3 PCBs together, developed and etched them one after the other. Here are the results:

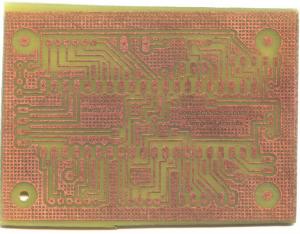

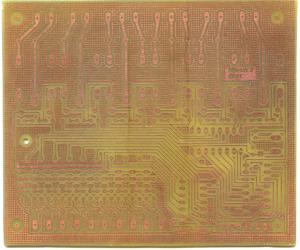

The CPU PCB

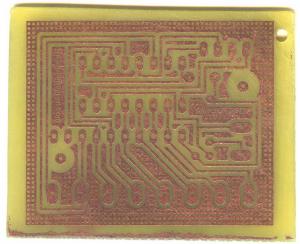

Input Card PCB
Output Card PCB
Making the PCBs - Adding the parts (April 3 2011)
It took me some time to drill and solder all the parts, and that is why i slowly turn to SMDs. I already have order a set of SMD resistors. The next PIC batch will contain also SMD pics. Of course, i will continue using DIP parts for prototyping.

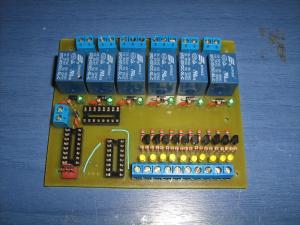

The Output card

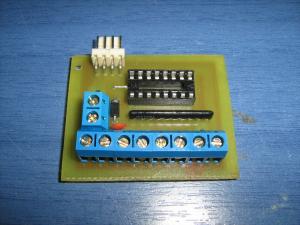

The Input card

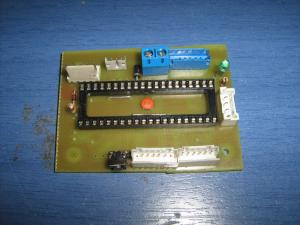

The CPU
Let's see, what have we done until now...

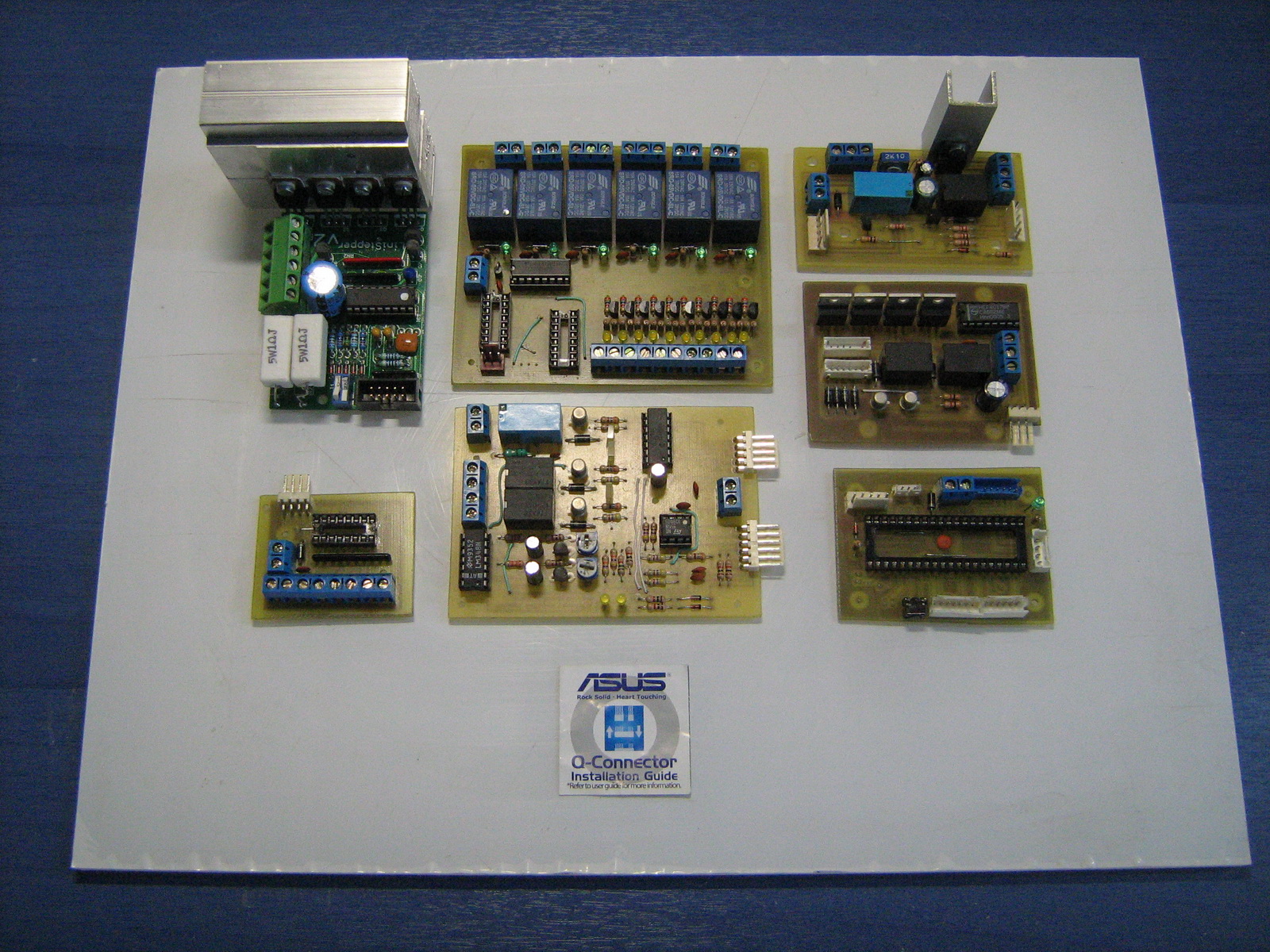

And then, i took a break, i made a coffee (manually but that is about to change shortly), and got all the PCBs for my coffee machine onto the workbench. This is the first time that i have a complete view of the motherboard! You see, i do not have the knowledge and the experience nor the tools to make one nice big motherboard, so i began making small modules that will eventually compose the motherboard. All the boards will be placed on a piece of wood or acrylic glass (most probably), to make one big board that will be the controller of the coffee machine. Here is one first look of the M/B:
Wooops, who put this Asus sticker on my motherboard? Anyway, here is the topology:
The topology is of course subject to changes. What i have to do now, is turn on my old windows PC, start the MPLAB and give the power to the CPU!
Finally, the motherboard. Ain't ASUS, but it works :D (May 14 2011)

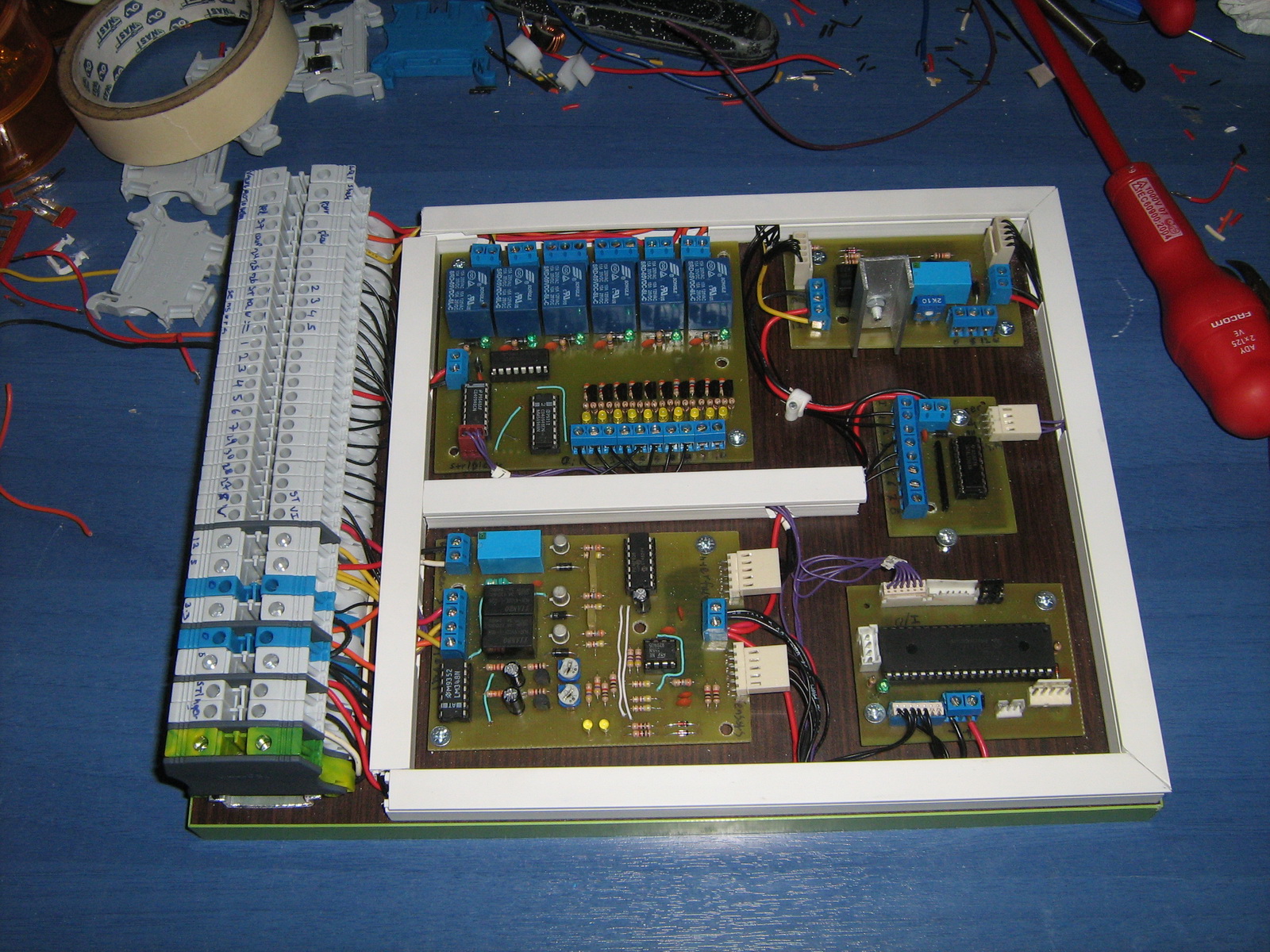

It took me many hours to decide which modules will be placed on the motherboard and which will be placed somewhere else. Finally, i decided that the stepper motor controller for the rotary table and the stepper motor controller for the sugar and coffee dispensers will not be included on the motherboard layout. Here is a photo from the motherboard with all the modules fixed and the cables in canals:

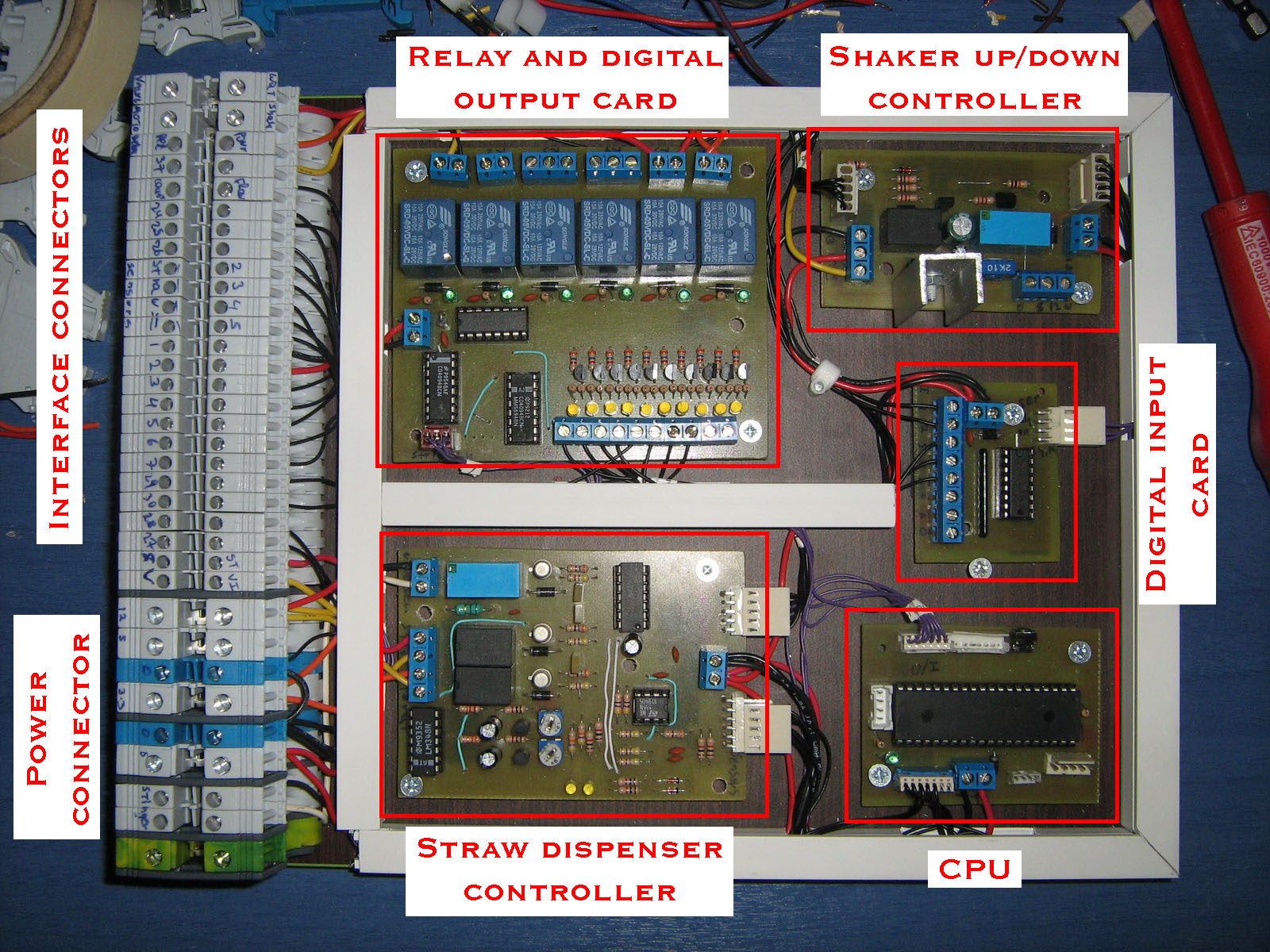

And here is an image with the motherboard topology:
@Alex In Greece during the Ancient times there was this saying: "Oyden monimoteron ek toy prosorinoy" which means that "nothing is more permanent than the temporary".
But now that you said that again, i think i should restart this project, shouldn't I? Hopefully within this year.
At 17 January 2014, 19:59:52 user Alex wrote: [reply @ Alex]
Dude what happened with this project, there hasn't been any updates for quite some time now. Looking forward to see the end result :)
At 13 November 2013, 17:56:48 user Robert wrote: [reply @ Robert]
This is a great invention! I especially like the straw delivery, it is perfect. how wonderfully useless! you are a genious!
At 16 September 2013, 15:38:37 user praveen wrote: [reply @ praveen]
excellent job......
At 14 June 2013, 17:45:35 user Amir wrote: [reply @ Amir]
Hi ,
Great work . From where did you buy the worm gear extruder ? Can you give me a website for that .
Many thanks
Amir
At 29 March 2012, 21:03:02 user alex wrote: [reply @ alex]
Hi you have a nice coffee Instant Cold Coffee Machine but you wanted to use a fridge for cold water but no water cooler that you use waron also in coffee automaaten is where you can get I know old water out of if not the name but it can look for you we have that built-in devices greetings alex
mail alex.heijkens@kpnmail.nl
Hello George. Regarding the elements, these are hardware wiring to indicate wire connections between the modules. The orange boxes indicate wires coming from the output module (Digital Output Module - DOM), and the green indicate wires going to the Digital Input Modules. Notice that for example, from module "Rotary table", 4 wires comes out, then 2 of them arrive from the DOM and 2 goes to the CPU.
As far as the diode is concerned, this is only for polarity protection. It is the same as the D2. But you are right, It is not necessary and i may not put it after all.
I think your architecture diagram (first figure) is slightly confusing, because it seems to include elements of code (the elements above the CPU) with hardware elements. Ideally, you would have a system-level block diagram detailing your hardware and a separate functional block diagram to describe your code. If I'm misreading your architecture diagram, feel free to ignore this.
Secondly, looking at your reset circuitry, I see you have a 1N4148 diode between your microcontroller pin and your ICSP header (pin 1). I'm fairly certain this diode is not necessary, so you may want to double check that.
--George
