24 May 2010
Author: Giorgos Lazaridis
Instant Cold Coffee Machine





Worklog - The challenges (May 24 2010)

The worm gears are NOT the best solution for the coffee/sugar supply...

There are some major challenges that i need to deal with. First of all, the coffee/sugar supply. I need to find a way to supply the proper amount of coffee and sugar, depending on the size of the glass and the type of coffee (sweet, medium, black, strong. light etc) that someone wants. The coffee/sugar tanks must be closed, so that the air and moisture will not come in contact with the contents. Although the use of a worm gear seems to be the best solution,it did not comply with one of my requirements: The coffee just in front of the worm gear is always in contact with the air and moisture! So i had to figure out a way to close the front side of the worm gear whet it does not rotate. That would require an extra mechanism and would increase complicity.

Another challenge was the raising/lowering mechanism. It sounds easy to make one, and actually it is, unless you try to make it! By the time i began designing and making this mechanism, i came across multiple problems that i could not even imagine. The main challenge was to keep the whole mechanism compact and light with fast response to start/stop actions. But the factor "price" was the basic challenge. I could use prismatic linear guides or cylindrical bearing-rods, but that would cost over 100 euros!

Another problem to solve, is the glass base. The glass must be fixed on a base during the shaking time, otherwise it will fall. Also, either the shaker or the glass needs to move during that time, so that all the contents inside are shaked.

A major challenge is also the cleaning of the shaker. If the shaker is not cleaned immediately after use, then the remaining coffee sticks on the metal. And finally, i had to solve the "cold water" factor and the ice cubes factor. I do have something in mind about the cold water. As for the ice cubes... I am not quite sure...

Finally, the straws! The frappe requires a straw, and although i could just have the straws near by to pick up one, that was not enough for me. The most difficult thing is to separate one straw from the others. If for example you put 20 straws in a funnel-like construction and you start vibrating it, then there will be a time that 2 or more straws will try to go inside the funnel and they will stuck. I have to deal with this also.



Worklog - The rough design of the robot (May 27 2010)

The following steps have to be taken:

  • Add a few water
  • Add coffee
  • Add sugar (if any)
  • Mix
  • Clean/fill
  • Add straw
  • Serve

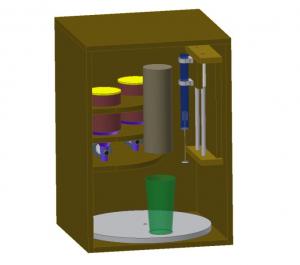

  • I began designing the machine in through-feed style. This means that i would put the glass on one side and get the coffee from the other. But i found a more compact solution. The glass will not move linear, but polar. This is the rough design of the machine:





    As always, click on the images to enlarge them. The steps are as follows:

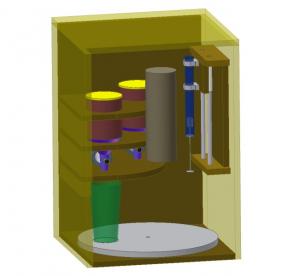

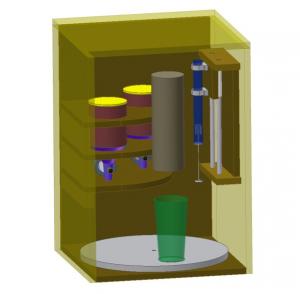

    The glass is entered and fixed on the base (base is not visible here) It turns 90o and goes under the coffee where the coffee is poured It turns another 90o, goes under the sugar and the sugar is poured Turns another 90o and goes under the mixer

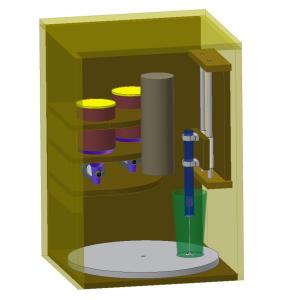

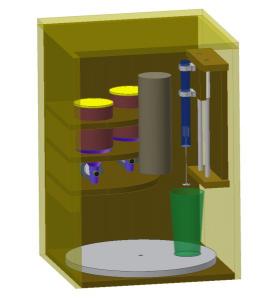

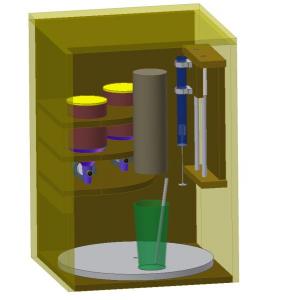

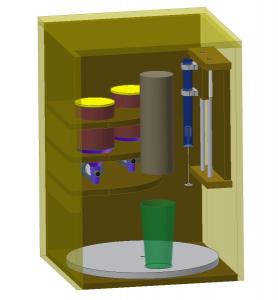

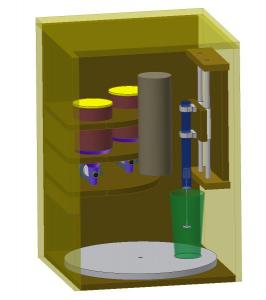

    The mixer is slowly lowered while it rotates at low speed. Gradually goes to full speed When the coffee is mixed, the mixer is raised half way. At that point it rotates 1'' at full speed. The filling procedure is started while the mixer is washed When the coffee is filled with water, it goes to the starting position. Above the start position there is the straw tang with the mechanism to put the straw in the coffee. The procedure is completed with a straw insertion!


    So, there are 5 groups. The sugar group, the coffee group, the mixer along with the water supply group, the straw group and the rotating table. Within the next pages, i will present each group separately, how i made it and the several difficulties i faced.
