24 May 2010
Author: Giorgos Lazaridis
Instant Cold Coffee Machine




Worklog - Improving the mixer rising-lowering mechanism (June 23 2010)

In the third page i presented the mixer mechanism along with the rising-lowering system. That was incomplete though, as the limit switches (high and low) were missing. I also decided to make a linear encoder to have an approximate position monitoring of the mixer. So, first the linear encoder. A ready-made linear encoder costs a lot to get. After all, they usually come with a high precision of some tenths of a millimeter, something that i do not need. So i made one myself, with an unused spare part from a CNC (a Balluff metal detector) and some screws:


I drilled a hole for the sensor to fit in First i put a pencil inside and moved the mechanism all the way side to side This way i had a straight line drawn on the base wood, directly at the center of the sensor hole

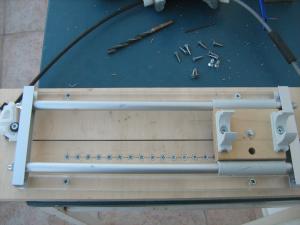

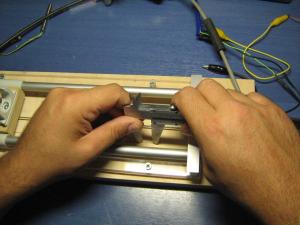

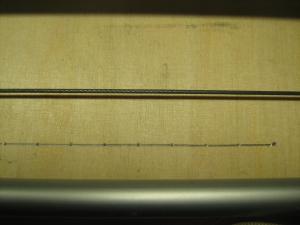

I used the caliper to mark equal spaces around 10mm each These are the marks. In each mark, i drilled a screw.


The first half of the encoder is ready. Now i had to fix the sensor inside the hole. The sensor will send a pulse each time that it is close to a metal (like the screws).


This is the sensor that i am about to use for the linear encoder I put it inside the hole. The sensor has a sensitivity range max 1.5mm. So the distance from the screws is critical. Not too big as it will not work, not too small as it will crash. This is the final assemble. I did not use the connector of the sensor as i did not have one right now. So i soldered 3 wires (+ - and signal)




The hardware limit switches!

Each CNC axis has two means of overrun protection: the software limit switch and the hardware limit switch. The first one is -as named- controlled by software. In my example, i know that from top to bottom i have 17 screws, so i expect 17 pulses to arrive. During the rising operation for example, when the controller reads 17 pulses, it will stop the motor as the head is at the top. But what if this procedure fails for any reason? Then the hardware limits will save the day. The hardware limit switches is -as named- hardware switches placed at the two sides of a shaft. They are usually located a little bit further than the software limit switch, and they control the power of the motor directly, not through the controller. If any of this switch is actuated, the power of the motor is immediately cut-off because it means that the head is about to go out...

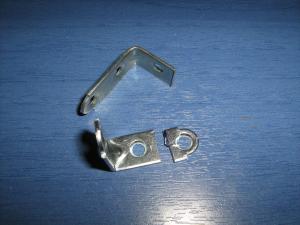

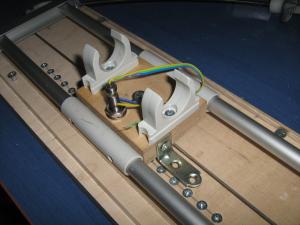

I will use 2 L metallic pieces From which i shortened one side I screwed one on each side of the mixer wagon, about 3mm distance from the base This is how it looks with both L profiles screwed
I had once ripped some switches from a pinball game... Very useful items I removed from both the metallic extension. With the wagon about 5mm from the top side, i fixed the first switch... ...and the other switch at the opposite side with the wagon about 5mm from the bottom. When the wagon is about 5mm from a limit position, the switches will cut off the motor power supply (NC contact) and will inform the controller (NO contact)
