Worklog - Making a model to see how it goes (March 13 2011)
It has been some 6 months since the last time that i updated this project. Many people sent me emails asking me if i quit making it. As a matter of fact, no, i did not quit making it. I just had some problems with time (mostly), and also i had to do some research for things that i am going to use for this. This is what i've done:
I did some research for touch buttons, because i decided to have touch buttons. During my research, i uploaded these:
I had an old scrap marine equipment, with a sleek LCD, and i wanted to see if it works and if i can use it for my project. I searched the internet from east to west, but i could find no info nor datasheet for this LCD. I also asked from the company that made this part for a datasheet, and also from other companies that sell it, but i got no response at all. So i had to find out myself how it works:
I went again to my friend, Christo Polidorou to cut and machine the woods with his amazing CNC. Christos has a new website in which you can see some of his wood designs. For the temporary housing, i will use scrap chipboard. The final coffee machine will be made with MDF wood (probably).
This is the top cover of the box
And that will be the middle separator
This is Christos, cutting the side panels
First, i screwed the side panels, the back and the top sides
This frame will be the base for the rotary table
The frame is places at the base of the box
Above the frame lays the rotary table
And the separator is screwed in the middle
Mounting the shaker module
First module to be mounted is the shaker. It must be fixed on the back:
First i screwed the motor.
Then i screwed the shaker base with the guides

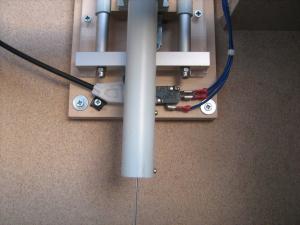

This is how it is mounted.
Mounting the straw dispenser
The straw dispenser is next. But there is something that needs to be taken into account. The straw dispenser has a vibrator motor. This means that the whole module has to vibrate with the motor, but the vibrations are not allowed to be transferred to the machine. Therefore, a suspension system has to be designed and the module must be fixed on this suspension. I searched all my part cabinets but i did not find any suitable spring or suspension. Then, i went outside to "get some sun", and i noticed that the suspension was all the time near me...
The solution was there... by the mop!
I cut a piece of water hose
And i made holes for M3 screws
I screwed 2 pieces on an L base
Then i drilled 2 holes on the aluminum piece of the stinger
And i fixed the L base on this aluminum piece
Notice that the L base is NOT directly screwed on the stinger
I fixed the L base on the coffee machine
It works so AWESOMELY FINE, that i am amazed. One last touch...

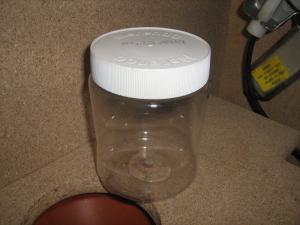

An empty chocolate container... Was not that hard to empty it!
I cut the cover with the router

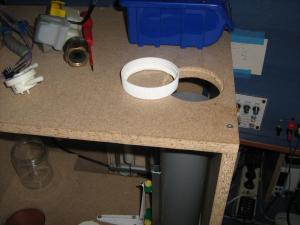

There is a hole right above the straw dispenser with
The bright cover is firmly fixed in this hole
And the container can be screwed...
The straw dispenser is now accessible from top
The sugar and coffee dispensers needs a funnel
Next module is the sugar and coffee dispensers. As a matter of fact, those modules needs no mounting at all. But a funnel needs to be mounted right under the dispensers, to drive the material in the middle of the glass, otherwise there will be a mess. The funnel must be easily removable to clean it:

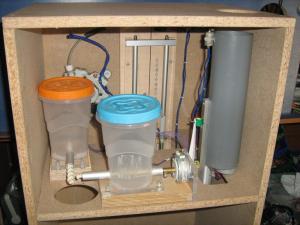

The sugar and coffee dispensers needs no mounting, only a funnel underneath
I will use these electrical connectors for fixing the springs
I found 2 similar springs from my parts cabinet

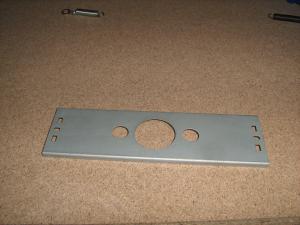

This metallic plate is perfect for the job, like if i had designed it for this!
The spring goes on one side of the plate
Then i fixed the spring on the side of the housing
This is how the spring and the plate is fixed
I made another similar spring with a similar connector
And i fixed this spring on the other side with a longer screw
This spring has a hook-end, while the previous was permanently fixed on the plate
The metallic plate can suspend on these two springs
The hole in the center of the plate is perfect! The funnel is now secured!
I began making this project on 24 of May 2010. Today, is the first time that i have "visual contact" with my wanna-be coffee machine. There are still a lot to do, but at least i see something.
