24 May 2010
Author: Giorgos Lazaridis
Instant Cold Coffee Machine




The rotary table needs of a reference point

There is something missing on the rotary table, and that something is a zero position, or as we call it on CNC machines, a reference point. Because the rotary table rotates infinite, there must be a way for the CPU to know at least one point of the cycle. If the CPU knows one point, then it can calculate all other points, as it knows already that the stepper motor has 200 pulses per revolution and ratio of the motor to table is known.

So, here is how the reference point will be detected:

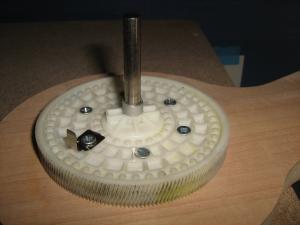

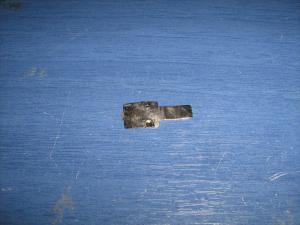

This is the contact of a hacked battery holder I drilled a M4 hole And bended in a right angle I screwed it on the gear of the rotary table

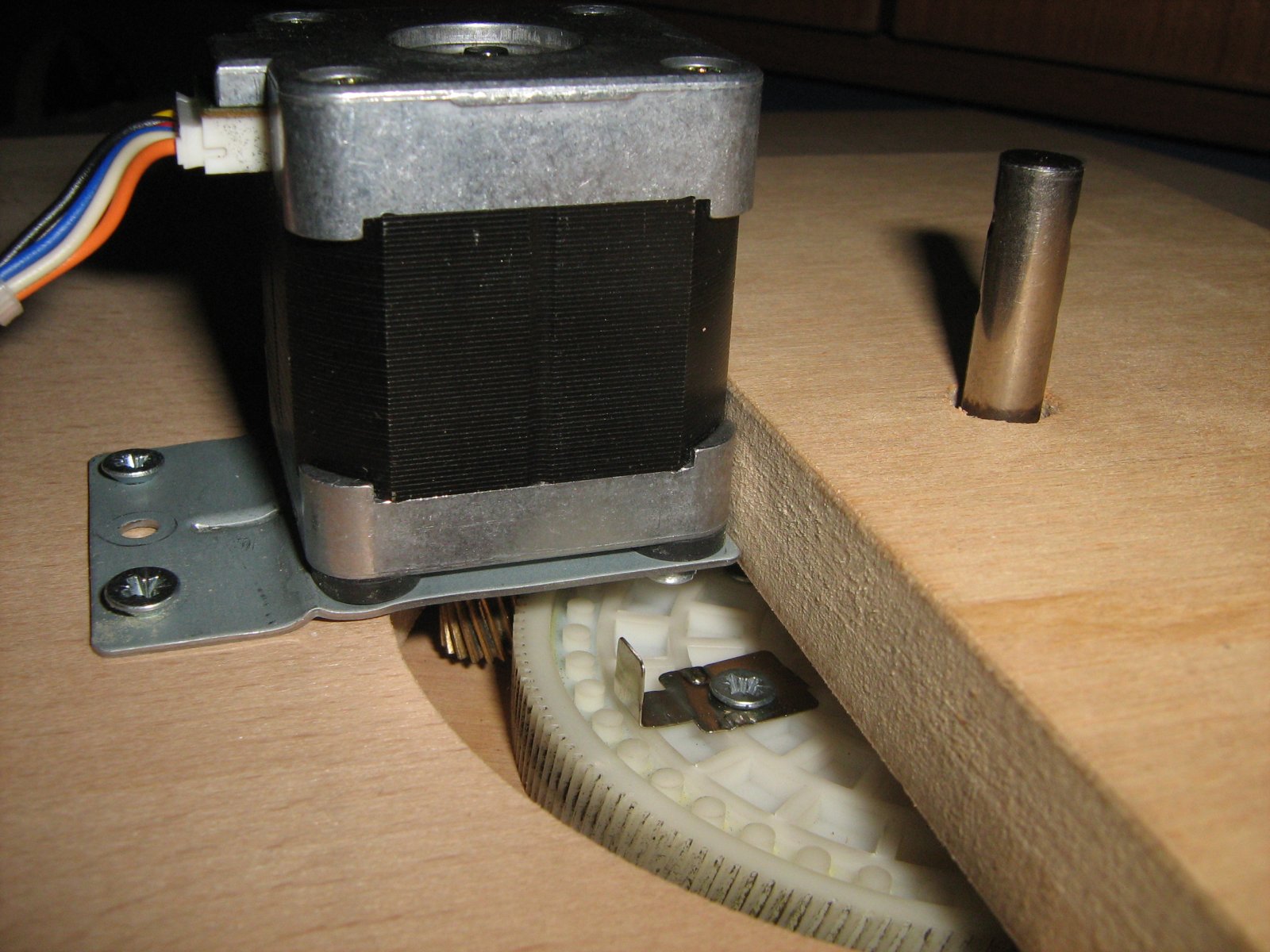

This is how the metallic part is placed.





This metallic piece rotates with the cup holder. Then, i got an IR beam cut pair that i hacked from an old printer last year...

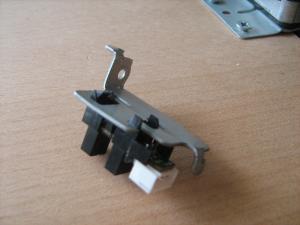

This is the IR pair that i got. These are some of the bases hacked from the printer i selected one and with a pair of pliers... ... "mod" it a little bit to fit my needs

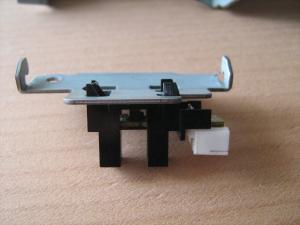

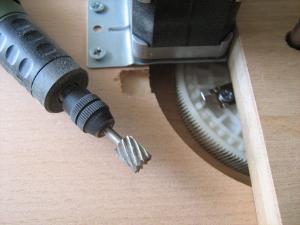

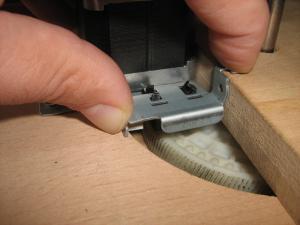

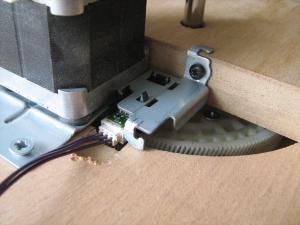

The IR pair fits fine on the modded base. I grooved a pocket for the wire The base with the sensor will fit there Perfect!

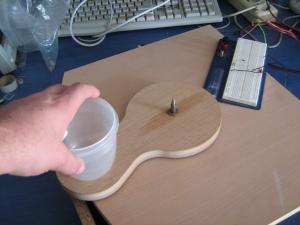

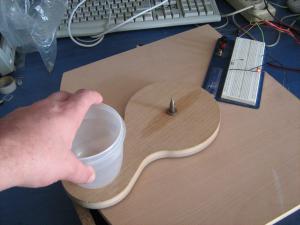

Now, here is how it works. As the cup holder of the rotary table rotates, the metallic part goes through the IR LED. Whenever this happens, the IR pair will send a signal to the CPU. This way, the CPU will know exactly where the rotary table is.

To test if the IR pair works well, i connected it on a breadboard with a red LED. As expected, it works with extreme precision (as always, click images to enlarge):


The metallic part is not between the IR sensor and the LED is OFF The metallic part is between the IR sensor and the LED is ON
