PC System Health Monitor




Worklog - Re-designing the entrails (February 14 2010)

The thermistors are ready and connected to the Master Controller, so does the 2 DS1621 and the 4 fans as well. Only one thing is left: A long testing time. Before some days, i had another long-term test that did not really took so long to understand that the design of the PC box was completely wrong. So, i have to re-design it.




Engineering loves simplicity because it works!

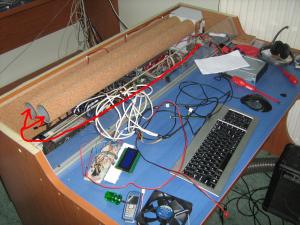

This is the "old" design of the box. Completely inefficient with heavy thermal loads. A hell for the hard discs. The red arrow indicates the air flow.

The old design had very poor performance and caused heavy thermal loads

The first design was rather complicated. The air inlet and outlet were both on the right hand side of the box. I had 2 95mm plastic tubes inside the box. The two 120mm outlet fans were pulling air from inside these tubes. Two 92mm fans was pushing air in the box. In the middle, i had another 2 120mm fans to help the air flow. This makes a total of 6 fans with a very poor efficiency. From the very first test runs, the performance was very poor. With 22�C ambient, the HDD were cooked. The shell had more than 45�C.

The new design is much more somplier. The air flow is linear and the has less obstacles and more free volume. The inlet is now from the left hand side and the outlet from the right hand side. Two large holes, a about 125mm each will provide the fresh air in the box,and the hot air will be thrown away from another 2 125mm holes. I will run the system with only 4 fans, all 120mm, to check the performance. If i need more air flow, i have 2 120mm and 2 92mm fans to choose from. I believe that i will not need them though.

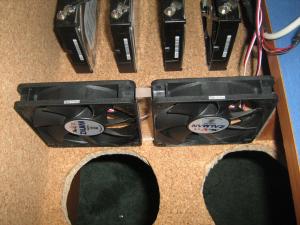

The inlet fans are placed vertical, and the outlet fans are placed horizontal. I do not know yet why i have done this... Maybe because i was too tired and too boring to make a construction like the inlet, as the outlet fans are simply placed over the holes... I will test this configuration a couple of days and then i will decide if i will put the outlet fans also vertical.

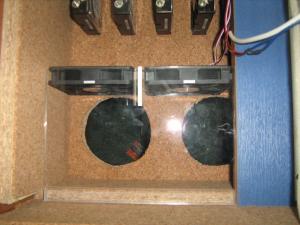

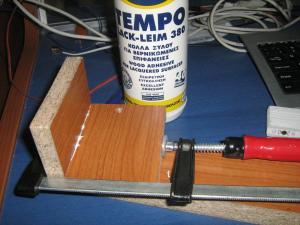

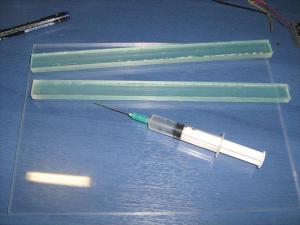

Using the ultra quick - ultra powerful lack leim 380, i glued 2 pieces of chipboard to make the cover for the side A transparent piece of acrylic glass will be the cover Between the 2 fans, a small piece of acrylic glass will seal the inlet from the box. The wooden cover can be seen right from the rightmost fan. When the cover is placed, the fans will draw air only through the holes and push it in the box


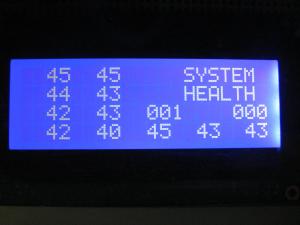

Then, i closed the box and sealed it all around. If no overheat is detected inside, i will let it run for a week or so. From time to time, i will record the measurements from the sensors with different fan speeds and ambient temperatures:
