PC Fan Failure Alarm

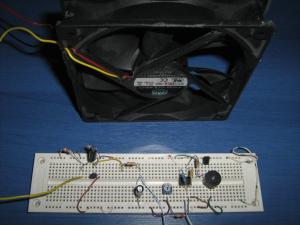

The circuit on a breadboard for test

Suppose that you have add some extra fans in your PC cabinet. Maybe they are controlled with a linear rpm controller, or they are undervoltaged with a simple rpm reducing circuit... Or they are controlled with a PWM controller circuit! And suppose that this fan provides also an rpm feedback wire from the tacho (3-wires or 4-wires fan). Usually, simple circuits will not use this wire. Isn't it just a pity to let it just hanging there unused? Wouldn't it be nice after all to have a circuit to check if the fan is working or not, and inform you with a buzzer (or something else) whenever the fan fails to rotate for some reason?

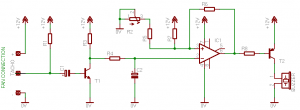

The circuit

Originally, i planned to use a simple missing pulse detector. I did try this circuit. Yet was unable to operate. Why? Because, a missing pulse detector implemented with a 555, will not exactly detect for missing pulses. Instead, it will reset the chip whenever a positive (or negative) period of the input signal arrives, and NOT on a clock transition. The pulses from the fans on the other hand, have a very specific timing. The HIGH and LOW state of the fan has to do only with the position that the rotor. In a full rotation, it will generate 2 pulses. This does not mean that, if the fan is stalled, it will send ONLY positive or ONLY negative! No! It will send the corresponding period of the specific position of the rotor! If you are interested to learn more, check the "How Brushless Motors Work". I explain in details how they work. So, if for example the fan stops in a position that always resets the 555, then it will never sound the alarm. Crap!

Many different design ideas came to my mind and i tested a couple of them. Some did work, some others failed. The most reliable and yet simple design was to convert the output of the fan tacho into voltage and compare it with a comparator or Schmitt trigger. This is the circuit diagram:





First of all, the tacho of the fan is pulled-up with R1, and filtered through C1. So, from there and on, ONLY pulses will pass through. If the fan fails to rotate, no matter if the tacho output is HIGH or LOW, the C1 will become a circuit break (as known from the capacitor theory for DC current).

T1 acts as an amplifier for the input pulses. The C2 is the smoothing capacitor. C2 does the whole frequency-to-voltage work. It charges through R3 and R4, and discharges though R4 and the internal resistance CE of T1. Across C2, the pulses will become direct voltage. The higher the frequency of the pulses, the lower the voltage across C2.

IC1 is an OP-Amp (741) connected as a Schmitt trigger. The input voltage is the voltage generated across the C2. The high and low threshold values are changed through the potentiometer R2. You can use the schmitt trigger calculator to change these values. I have chosen a very small hysteresis - nearly (or less) than 1 volt. The hysteresis can be controlled by the resistor R6. the bigger the resistor, the smaller the hysteresis. The reason i did this is simple. I wanted to have not only a check if the fan is stalled, but also to check if the fan rotates in unusually low rpm, and i also wanted the alarm to turn off if the fan start to rotate again. In other words, i wanted to have an automatic reset of the alarm if after a failure the fan started to rotate again.

Finally, the output of the 741 is driven to the base of a PNP transistor. The transistor will actually reverse the signal and it will also act as a driver for the buzzer. I put the probes in some key-positions of the circuit. Look at the oscilloscope:

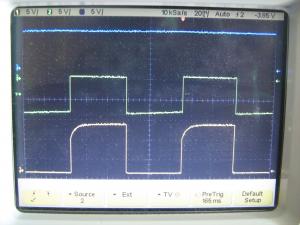

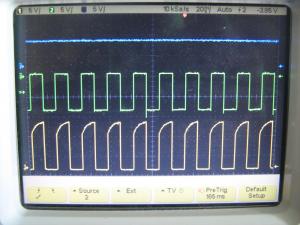

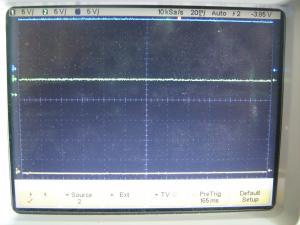

The oscilloscope connected on the circuit. I am controlling the circuit with a linear fan controller i made yesterday. YELLOW: This is what comes from the C1 to the base of T1
GREEN: The T1 output
BLUE: The voltage across C2		 At about 100rpm, the voltage (BLUE channel) is increased from 5V (@1200rpm) to about 10V. When the fan is stopped, the voltage is 11.5V

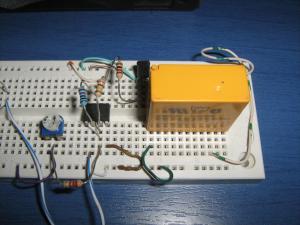

Relay instead of a buzzer

Simply change the buzzer with a 12V relay and it works as is.

You can simple exchange the buzzer with the coil of a 12V relay. It will operate normally, no other change is needed.

Bill Of Materials (First circuit)
Resistors
R1Resistor 4.7 KOhm 1/4 Watt 5% Carbon Film
R2100 KOhms potentiometer
R3Resistor 1.5 KOhm 1/4 Watt 5% Carbon Film
R4Resistor 47 KOhm 1/4 Watt 5% Carbon Film
R5Resistor 220 Ohm 1/4 Watt 5% Carbon Film
R6Resistor 100 KOhm 1/4 Watt 5% Carbon Film
R7Resistor 10 KOhm 1/4 Watt 5% Carbon Film
R8Resistor 1 KOhm 1/4 Watt 5% Carbon Film
Capacitors
C11 uF 16 Volts electrolytic capacitor
C247 uF 16 Volts electrolytic capacitor
Integrated Circuits
IC1LM741 Operational Amplifier
Transistors
T1BC547 Switching and Applications NPN Epitaxial Transistor
T2BC327 Switching and Amplifier Applications PNP Epitaxial Silicon Transistor



The same circuit with manual alarm reset

With slight changes and a pushbutton, you can have manual alarm acknowledge...

I talked above for the hysteresis of the 741. I have chosen a small hysteresis so that the circuit will reset itself when the fan starts to rotate again. In case that you do not want the reset to happen automatically, then you need to change the R6 with a smaller one, like for example 10 KOhms. The hysteresis will be dramatically increased, in some cases (according the setting of R2), it will be as big as 6 volts. So, when the Schmitt trigger changes state, it will be rather difficult to go back to its original state.

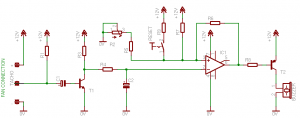

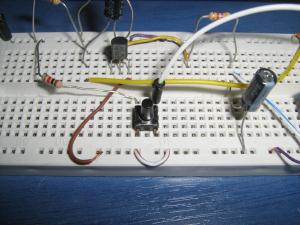

To reset the circuit, a pushbutton has been added. The new circuit is as follows:







Bill Of Materials (Second Circuit)
Resistors
R1Resistor 4.7 KOhm 1/4 Watt 5% Carbon Film
R2100 KOhms potentiometer
R3Resistor 1.5 KOhm 1/4 Watt 5% Carbon Film
R4Resistor 47 KOhm 1/4 Watt 5% Carbon Film
R5Resistor 220 Ohm 1/4 Watt 5% Carbon Film
R6Resistor 10 KOhm 1/4 Watt 5% Carbon Film
R7Resistor 10 KOhm 1/4 Watt 5% Carbon Film
R8Resistor 1 KOhm 1/4 Watt 5% Carbon Film
R9Resistor 1 KOhm 1/4 Watt 5% Carbon Film
Capacitors
C11 uF 16 Volts electrolytic capacitor
C247 uF 16 Volts electrolytic capacitor
Integrated Circuits
IC1LM741 Operational Amplifier
Transistors
T1BC547 Switching and Applications NPN Epitaxial Transistor
T2BC327 Switching and Amplifier Applications PNP Epitaxial Silicon Transistor



Adjusting the circuit

The circuit can be adjusted very easy. Start the fan and wait until the max speed is achieved. If the fan is controlled, then set it in its lowest speed setting. Then turn the potentiometer R2 until the load (buzzer or relay) is actuated. Then, turn it slowly to the other side. When the load is disarmed (eg the buzzer is NOT buzzing or the relay is disarmed), give it another slight turn (just a very slight turn like half a degree). It should be ready. Stop the fan with your hand and see if the load is armed. You will notice a delay. This is normal. Then release the fan. Again you will notice a delay for the load to be disarmed.

In case that you make the second circuit with the manual reset, then you should be aware that the reset will only operate if the fan is rotating. If the fan fails and the buzzer is actuated, it cannot be stopped unless you switch off the power supply.
