Triple PID Temperature Controller





Worklog - The Schematic Diagram (December 7 2011)

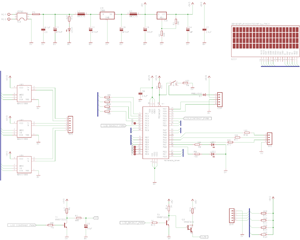

Here is a screenshot from the schematic diagram. Since the resolution is very bad and since i use may buses and labels, i will upload the eagle files as well:





Top left is the power supply. Since this circuit is going to operate in a very noisy environment, i had to add some extra filtering blocks. C1 C2 and L1 is a Π filter to reduce EMI and voltage spikes. The input is then regulated to 5 volts with a 7805. A second Π filter is used to filter the 5 volts. Since the PIC that i be using operates at 3.3V, i added an LM317 (IC3).

The LCD (top right) is a 20 by 4 character LCD display with the HD44780U Hitachi controller. At the bottom there are 3 sub-circuits. The first (bottom left) is a PWM LCD contrast adjustment circuit. Actually, this is a low pass filter (R7-C5) driven from a voltage amplifier (T1-R6). I have a page in which i explain in details how this PWM LCD contrast adjustment circuit works.

At the bottom mid of the schematic is the second sub-circuit. This is the LCD brightness adjustment. Since the LCD has LED backlit, pure PWM pulses are enough to change the brightness. But the PIC outputs only 3.3V with a maximum of 20mA. The first transistor (T2) is a common emitter voltage amplifier which amplifies the PIC output from 3.3 to 5 volts. The second transistor (Q1) is a typical emitter follower (common collector) to provide maximum current for the LEDs. Finally, the third sub-circuit (bottom right) is a set of pull-up resistors for the 4 inputs.

The main portion of the circuit is at the middle of the page. On the left side there are the 3 MAX31855J chips for the J-type thermocouples. The chips are directly interfaced with the PIC which is at the center of the page. As always, i add an on-board push-button for hardware reset. The PIC is programmed through the ICSP connector on the right side.

Here is the Eagle .sch file:

 Triple PID Controller - Eagle Schematic V1.1



Bill Of Materials
Resistors
R1Resistor 390 Ohm 1/4 Watt 5% Carbon Film
R2Resistor 680 Ohm 1/4 Watt 5% Carbon Film
R3Resistor 10 KOhm 1/4 Watt 5% Carbon Film
R4Resistor 100 Ohm 1/4 Watt 5% Carbon Film
R5Resistor 22 KOhm 1/4 Watt 5% Carbon Film
R6Resistor 4.7 KOhm 1/4 Watt 5% Carbon Film
R7Resistor 680 Ohm 1/4 Watt 5% Carbon Film
R8Resistor 180 Ohm 1/4 Watt 5% Carbon Film
R9Resistor 180 Ohm 1/4 Watt 5% Carbon Film
R10Resistor 180 Ohm 1/4 Watt 5% Carbon Film
R11Resistor 180 Ohm 1/4 Watt 5% Carbon Film
R12Resistor 180 Ohm 1/4 Watt 5% Carbon Film
R13Resistor 1 KOhm 1/4 Watt 5% Carbon Film
R14Resistor 3.3 KOhm 1/4 Watt 5% Carbon Film
R15Resistor 10 KOhm 1/4 Watt 5% Carbon Film
R16Resistor 2.2 KOhm 1/4 Watt 5% Carbon Film
R17Resistor 100 Ohm 1/4 Watt 5% Carbon Film
R18Resistor 100 Ohm 1/4 Watt 5% Carbon Film
R19Resistor 100 Ohm 1/4 Watt 5% Carbon Film
R20Resistor 100 Ohm 1/4 Watt 5% Carbon Film
R21Resistor 6.8 KOhm 1/4 Watt 5% Carbon Film
R22Resistor 6.8 KOhm 1/4 Watt 5% Carbon Film
R23Resistor 6.8 KOhm 1/4 Watt 5% Carbon Film
R24Resistor 6.8 KOhm 1/4 Watt 5% Carbon Film
Capacitors
C1Electrolytic Capacitor 470 uF 16 Volts
C2Electrolytic Capacitor 470 uF 16 Volts
C3Electrolytic Capacitor 470 uF 16 Volts
C4Electrolytic Capacitor 1 uF 50 Volts
C5Electrolytic Capacitor 47 uF 16 Volts
C6Electrolytic Capacitor 100 uF 16 Volts
C7Ceramic Capacitor 0.1 uF 50 Volts
C8Ceramic Capacitor 0.1 uF 50 Volts
C9Ceramic Capacitor 0.1 uF 50 Volts
Transistors-Diodes
T1MMBT2222 NPN General Purpose Amplifier
T2MMBT2222 NPN General Purpose Amplifier
Q1MMBTA14 NPN Darlington Transistor
D1PMLL4148 High-speed diode
Integrated Circuits
IC1PIC 16LF1939 Microcontroller
IC3LM317 3-Terminal Adjustable Regulator
IC4DF02M 1.5 Ampere Bridge Rectifiers
IC57805 Positive Voltage Regulator
IC47805 Positive Voltage Regulator
U1MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter
U2MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter
U3MAX31855 Cold-Junction Compensated Thermocouple-to-Digital Converter
Misc
L1100uH Inductor
L2100uH Inductor
LCD1LCD 20x4 Character LCD w/ HD44780U1 controller
