PCB Etching Bath with Heater and Agitation

Worklog - Controlling the heater

If you have read the article about Removing the built-in thermostat of an aquarium heater, you will have notice that the circuit for controlling the heater was built on a breadboard for test. Thus, i had to make first a PCB for this circuit. The circuit diagram along with the PIC program can be found here:

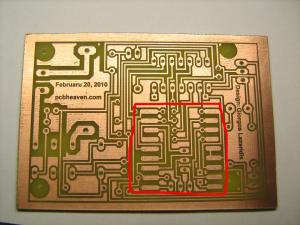

With the Eagle i draw the PCB and etched it in my new tank, with the heater heating the solution! I suppose this can be declaread as the first test run. It needed roughly 6 minutes to etch the PCB. This is the result:

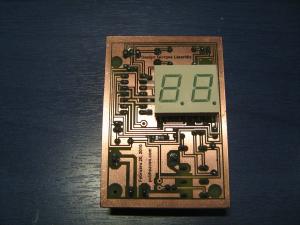

Take a closer look at the marked area. I will sodler the LED digits to the bottom side of the PCB. I have not drilled holes, because i will solder them as an SMD device. For this, i had to bend the pins of the display by hand, as it was a through-hole device. Please, if you have not yet notice the "Februaru", just don't. Here is the PCB with the components soldered:

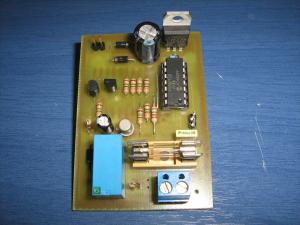

And this is the bottom side of the PCB with the display:

A base for the heater

As i said before, the heater is for fish aquarium. The base of the heater is 2 suction cups. I had to make a base to hold the heater at the side of my tank. For this, i used a 2cm wide piece of acrylic glass. I bended this piece at the bottom side for the air-bubbles hose. On the top side, i bend it to make a clip, so that the base would kept in place while in operation. Then, i used the grinding wheel to make slots. Through these slots, i fixed the bases of the heater with tie-wraps. I had of course removed the suction cups.

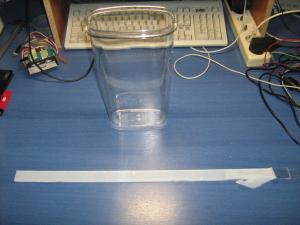

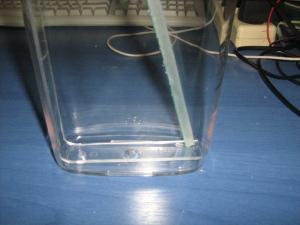

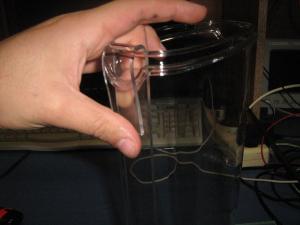

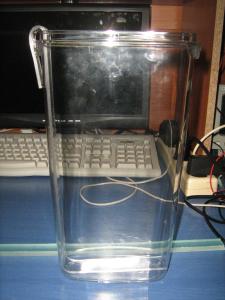

For the base, i will use a long, 2cm wide acrylic glass I bended the bottom side for the air-bubbles hose I bended the top side to make a security clip Almost ready...

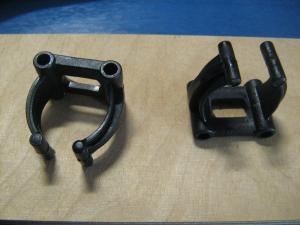

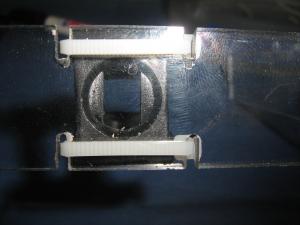

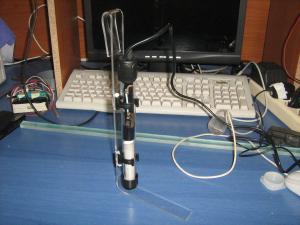

These are the original bases of the heater, without the suction cups With the grinding wheel i made slots to fix the bases with tie-wraps The heater can now be attached to the base
