16 October 2010
Author: Giorgos Lazaridis
Acrylic Glass Folding Heater




Worklog - The water tank and radiator (November 21 2010)

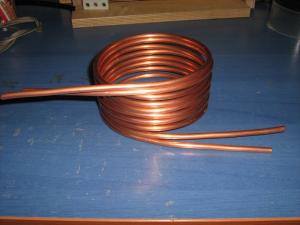

This is my home-made radiator made with 3 meters of 6mm copper tube

I made a lot of experiments, with different water volumes, with peltiers (just for the experiment), radiators and such. I also got copper 6mm tube and made my own circular radiator with a 120mm fan (which it was a great failure). Anyway, after gaining some more experience, i realized that the power that i want to dissipate is so little, that i need of no radiator or other heat exchange method. The only thing that i would need is a metallic tank enough to hold at least 1 liter of water, and that's all.

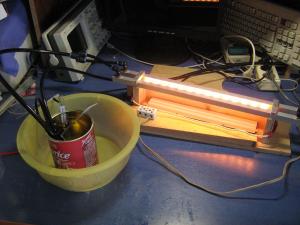

The tank has to be metallic to have better heat transfer I ran some experiments with it... It is just perfect


I had to make some changes of course...

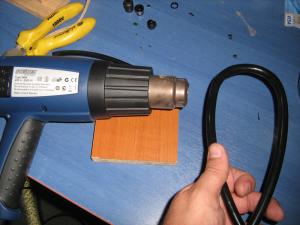

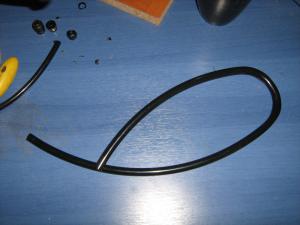

I got this 10mm long tube And with the heat-gun... ...I formed it...




Then, i had to make the tubing for the water pump and the return:

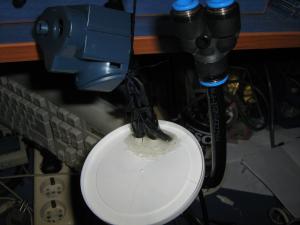

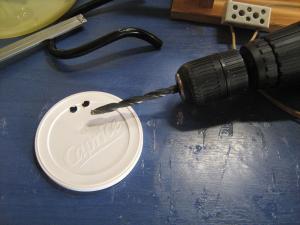

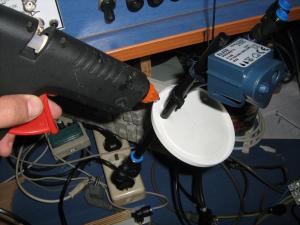

Then i drilled 2 holes significantly smaller than the tube (8mm) I put the 2 tubes inside, fixed the pump and put the wire of the pump though another smaller hole I applied lot of hot-melt glue from the inside of the cover to make it water-tight I let the glue to heal completely

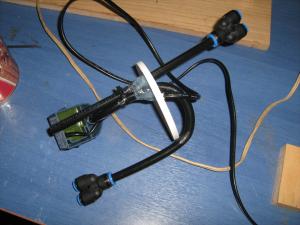

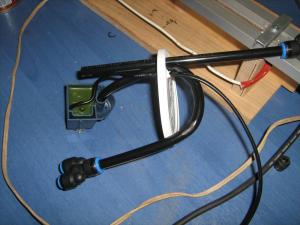

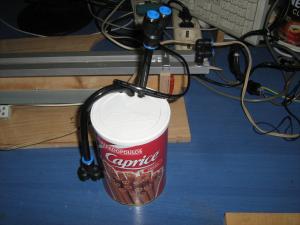

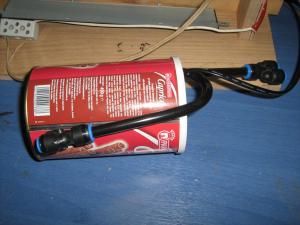

This is the cover with all the tubing and the pump wire The cover placed on the tank. I will put also silicon to seal it The tank will be placed horizontally, to maintain lower profile


So, now that i know exactly what i need to make for base, i will re-make it once more for a final time. Hopefully, this project will end within this week.

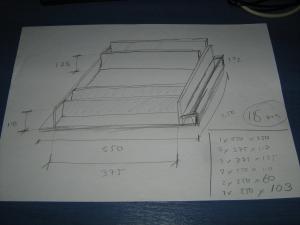

The draft drawing of the base

Usually, i make 3D models before i go to the construction. This time, i decided to practice my (inexisting) artistic skills, and i made a draft drawing with pencil and paper (wow! they still exist!). So, here is the drawing so far (as always, click to zoom):





The overall width will be 550mm and the length 250. It will have 2 separated rooms. The front will be for the lamp and the back for the water tank. The height is calculated so that the water tank will be 5mm above the bottom side, for better air circulation. Also, the 2 separators on the back are higher than the ones in the front, because they will also server as stands for the material, when it is long. I made a list of the woods that i will need. Te woods will all be 18mm thick.
