I used an octal-type relay. These relays are easy to open (either with screws or clips), and are big enough to have a clear view. So, here is the relay opened:
You can clearly see the common contact, the NO and NC contacts as well as the electromagnetic coil and the return-to-normal spring. The armature is the thick metal that the common contacts are fixed on it. The following two pictures shows how the common contacts are move with the armature, and how the relay changes state:

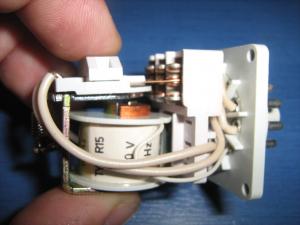

The common contacts are in the normal position

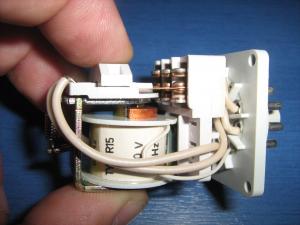

I press the common contacts and the state of the relay is changed
The following video demonstrates how the common contacts are moved:
Well here is the deal. Long long time ago, the switches were like "knife" switches (check this page http://upload.wikimedia.org/wikipedia/commons/4/4b/Open_knife_switch.jpg)
See the similarity of a relay contact? The blade connects to the common, the other end that the blade goes in is the NO contact. So, it was common place to connect the live to the NO contact as safety measures, so that when the switch was off (open) the blade that was exposed would have no power.
BUT, this is not common use an more. Here is the other deal. If you want the relay to switch power between two loads, then the the live should go to common. Say for example that you want to power a traffic light for pedestrians, it can either be GREEN or RED, never both. So you connect the common to live power, the NC to RED and the NO to GREEN. Arm and disarm the relay to turn each of the lights ON or OFF...
So, it has to do with the operation that you want to perform.
