| This project is not completed yet - Last update: January 12, 2014 |
PAGE 1 of 4
So, it all began one day when i was trying to reflow with my hot-air gun one QFN chip and i tried to go by the book. I used the contactless IR thermometer to measure the temperature in various distances. It was not hard, but it was BORING, boring to death. Sitting there with this thing in hands for 6 to 7 minutes.... Kill me.

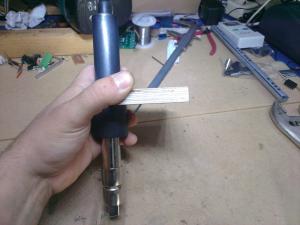

This is the Aoyue 968. The hot-air works fine. But the soldering iron that comes with this station is literally a piece of junk! Just get the plain hot-air station and NEVER get the Aoyue soldering iron.
-BUT- ATTENTION ATTENTION The 968 series comes with a built in temperature controlled soldering iron. I can only describe it with 3 words: Useless piece of junk. It is so bad, so utterly and totally rubbish that i plan to make a review on this soldering station to save others from buying this thing.
This experience was enough for me to start this design. I will be using plywood for the base material as its my favorite type of wood - Its strong, its light, screwing on its sides won't cause problems, and has a nice finish as well. You get all these nice features at a higher cost though, but hey! How many times will i make such a tool?
The Basic Idea

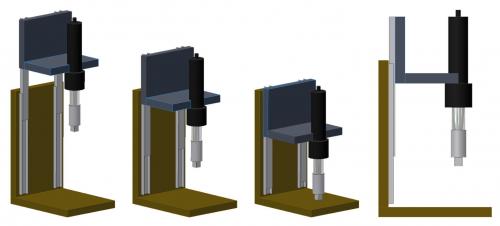

Usually I spend more time in 3D modelling before I go front of the workbench. But this time i only designed a basic model only to get an idea of the dimensions of the wood pieces:
As you see there is no motor or driving mechanism. I will fit them during the making. So, with no further ado, let's see the make of...
Starting with the Plywood
Four pieces is all it takes to make the frame of the NC. And BTW, an NC machine is the same as a CNC without the leading C. CNC stands for "Computer Numerical Control" and NC stands for just "Numerical Control". My device will follow "numbers" to go into specific positions, but there is n o computer or CAD/CAM software whatsoever, so it is an NC machine...
 |
 |
 |
The pieces are all 15mm thick:
130mm x 100mm
130mm x 80mm
130mm x 220mm
130mm x 170mm |
I use a 30mm drill to drill a semi-circle (pocket) at the edge of the 130x80 piece. This is where the hot-air gun will fit |
I grind the pocket a bit more until the hot-air gun handle fits snugly. |

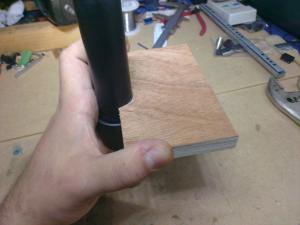

The hot-air gun handle must fit snugly into this pocket: This is the idea:
Now let's finish the base. The 130x80 piece with the pocket is screwed on the surface of the 130x100 piece:
 |
 |
 |
 |
| When screwing wooden parts together, always remember to drill 3mm on one part |
Its always a good idea to use glue |
3,5 x 30 chipboard screws are perfect |
Looks stable to me! |
The Linear Guides
The guides will allow the carriage (hot-air gun base) to move up and down. The guides will be fixed on the back support, that is the 130x220 piece. I will use simple drawer guides which are perfect for the job and dead-cheap.
 |
 |
 |
 |
| These drawer guides are perfect and cheap! |
But first i have to trim them to size |
That's about 10mm shorter than the base |
Important: File the edges! |
With a pair of pliers i had to "bend" the edges of the guide pieces. This way they will not break apart.
And something else that is important:
 |
 |
 |
| Do you notice the ball bearing carriage inside the guides? They are not properly aligned... |
So if you extend them to full stroke, they will not have the same length. |
With the pliers i had to "align" the ball bearings so that when the guides are retracted the bearings are in the middle of the rails. |
Click here to go to page 2 and see the rest of the make
