I am preparing a larger project which will need a foot switch to operate. I made once a foot pedal which was kinda tanky. This time,i made a lighter version, very simple to make, still with a nice operating feel. I don't really remember where i saw this design, i think from ebay.
The basic construction
The foot switch has only one piece of thin acrylic glass:
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_1.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_2.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_3.jpg) |
I got an 11cm wide 4mm thick acrylic glass piece |
And i marked a 30cm long piece from it |
And cut it |
Then i used my acrylic glass folding heater to bend the piece...
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_4.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_5.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_6.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_7.jpg) |
I marked a perpendicular line at about 5mm from the center of the piece |
Heated this line... |
When the material became soft, i gave it an extreme bend |
Now it begins to look like a foot pedal... |
The electronics
At first i wanted to glue the switch on the plexiglass with hotmelt glue, but then i decided to make it more "fancy":
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_8.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_9.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_10.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_12.jpg) |
I cut a T-shaped perforated PCB |
I will use this RJ connector, so i marked the fixing holed on the PCB |
I drilled the holes for the RJ connector |
And then i soldered the connector and a small PCB-mount switch |
| ![DIY Foot Pedal Switch](/userpages/images/med_thumbs/cheap_foot_pedal_11.jpg) This is how it looks | |
Then i had to fix the PCB on the acrylic glass:
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_13.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_14.jpg) |
![DIY Foot Pedal Switch](/userpages/images/thumbs/cheap_foot_pedal_15.jpg) |
I marked a slot on the plexiglass for the soldering work of the PCB, and the holes to fix it |
I cut the slot and drilled the holed for countersink screws |
Almot ready... |
| ![DIY Foot Pedal Switch](/userpages/images/med_thumbs/cheap_foot_pedal_16.jpg) Then i used a small piece of self-sticking foam to act as spring | |

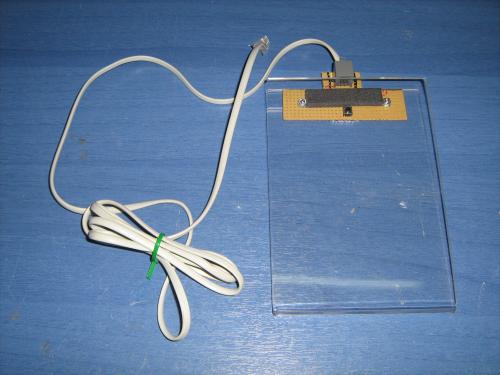

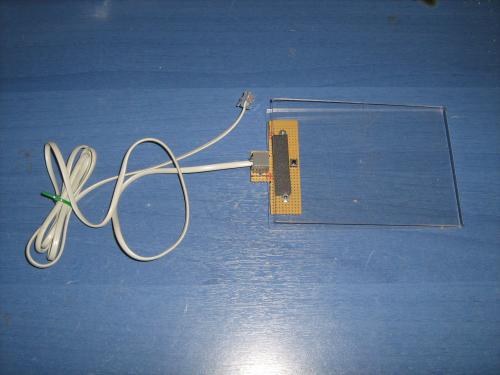

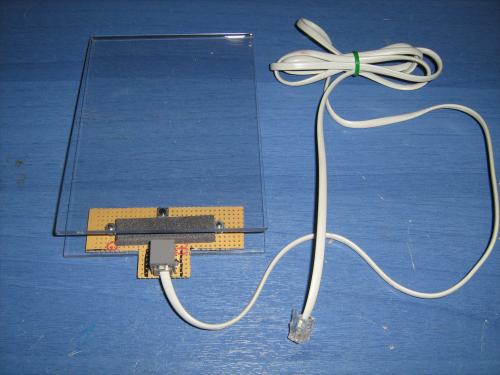

Ready, Quick and Easy!
