PAGE 2 of 8 - Speed Indicator Panel
[ Speed Indicator Panel ]
Another fantastic modification was the speed indicator panel.....
I wasn't completely sure of the combination with the colors i was going to use.
My motobike as you see is light-blue.So the first color that was candidate was the blue, and the second one
was the (cold) white.
After few experiments i did, i ended that the cold white was obviously the best color that suited the panel.
| |

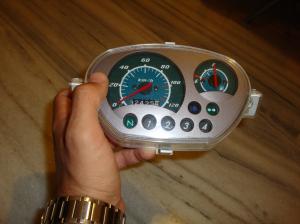

The Speed indicator panel. (Notice i have painted the needles. Sun had made them fade out.) | |
So when i disassembled the panel, for my good luck again, i observed that the holes that panel have for the bulb gears, are rounded were i consumed that 10mm leds would fit on these holes..... So i bought 10mm white leds for the gears and some smd leds for the panel backlight.And VOILA!!!! I was correct. The rounded 10mm Leds were perfectly fitted on the holes with a little bit help from a drill with 9.5mm diameter so that the leds would go into the holes cuneated.
 |
 |
| The disassembled speed indicator panel. |
The way i glued the smd leds for the backlight.(Observe the holes.) |
| |
Another view with the 10mm Led. | |
Then i decided that it would be a nice idea of developimg a pcb to mount the leds and the controller on it.
So i carefully designed the pcb, after i had made my measurements....
And believe me it wasn't so easy to alligh the leds to the panel.
(I did three of them the first had wrong allignment, the second one had error with the transistor i used npn instead of pnp, and the third one was my last without errors.) Here are the results of the final pcb....
 |
 |

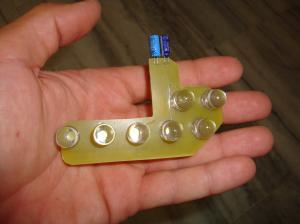

| The front side of the pcd. (Notice that there is nothing on the front because it has to go firmly to the panel.) |

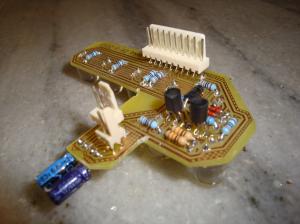

The bottom side of the pcb. (Notice the connectors.) |
 |
 |
| Another look of the bottom side. |
A Closer look of the bottom side. |
The connectors on pcb's bottom are for:
The 3 pin connector connects the LM7806 with the pcb (I had to fend it off because it should be placed on a heatsink.)
The 2 pin connector connects the backlight smd leds, and also an extra 10mm led for panel's backlight.
The 10 pin connector has the connections with the gears,the flasher,the big scale lights,and the power supply...
 |
 |
| The pcb mounted on the panel. (Notice the connection of the leds with the extra one.) |
A different angle of the pcb mounted on the panel. |
You can download the file below, which includes the schematic and the board in eagle format.
 |
 Download file
Speed Indicator Panel File in Eagle format .sch and .brd |
Bill of matelrials
| | Bill of materials | | | Resistors | | R1 | Resistor 130 Ohm 1/4 Watt Carbon Film | | | R2 | Resistor 130 Ohm 1/4 Watt Carbon Film | | | R3 | Resistor 130 Ohm 1/4 Watt Carbon Film | | | R4 | Resistor 130 Ohm 1/4 Watt Carbon Film | | | R5 | Resistor 130 Ohm 1/4 Watt Carbon Film | | | R6 | Resistor 130 Ohm 1/4 Watt Carbon Film | | | R7 | Resistor 130 Ohm 1/4 Watt Carbon Film | | | R8 | Resistor 1 KOhm 1/4 Watt Carbon Film | | | R9 | Resistor 1 KOhm 1/4 Watt Carbon Film | | | R10 | Resistor 10 KOhm 1/4 Watt Carbon Film | | | R11 | Resistor 10 KOhm 1/4 Watt Carbon Film | | | | Capacitors | | C1 | Electrolytic Capacitor 10 uF 35 Volts | | | C2 | Electrolytic Capacitor 10 uF 35 Volts | | | | Diodes | | D1 | 1N4148 Switching Diode |  | | D2 | 1N4148 Switching Diode | | | D3 | 1N5819 Diode 1A 40V Schottky Rectifier | | | | Transistors | | TR1 | BC558 PNP Epitaxial Silicon Transistor | | | TR2 | BC558 PNP Epitaxial Silicon Transistor | | | | IC's | | IC1 | 7806C Positive Voltage Regulator | | | | Led's | | LED 1-7 | 10mm Rounded White Leds | | | LED 8-15 | Smd White Leds | |
