PAGE 6 of 9 - A Base for the USB Switch
First i need to make something clear: My desk is also the PC box, do not expect to see a typical PC box...
I do not want to mount the PCB directly onto the box, so i thought to make something fancier, like a simple acrylic glass base...
 |
 |
 |
| First i got a plexiglass piece... |
...and i marked the PCB size... |
...which i cut with the saw |
 |
 |
 |
| I will be using some metallic spacers for the PCB |
The PCB with the spacers |

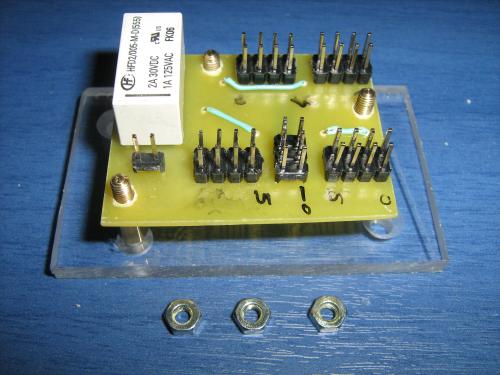

3 M3 nuts are used to fix the spacers onto the PCB |
 |
 |
 |
 |
| This is how i will fixed the PCB onto the acrylic glass base |
I marked the hole positions |
And drilled them with 3.2mm drill bit |
Since i will be using countersink screws, i need to make the pocket |
 |
 |
 |
| Then i made another 2 holes with the countersink pocket from the opposite side |
I fixed the spacers onto the base |
This is how it looks now... |
Eventually, this is how the PCB will be mounted onto the base with the spacers:
