PAGE 5 of 9 - The USB ONOFF Switch
Soldering the parts on the USB On/Off Switch
The PCB that i developed had both the smartcard reader and the USB switch PCBs, so i first had to separate them. For some reason, both PCBs had wrong date etched. The smartcard reader circuit had one month error (July 7 instead of June 7), while on this PCB i etched the date July 2010...
 |
 |

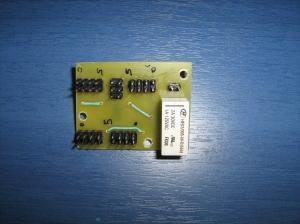

| The top side of the switching PCB. There are 4 connectors for the 4 USB inputs and outputs, a connector for the relay and another 6-pins connector for interfacing this board with the reader |

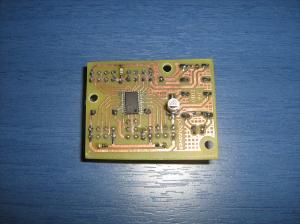

The heart of the circuit is the ADG714 CMOS SPI octal SPST switch. I'm still not sure if this is going to work with USB wires... A test will show... |
Interfacing the boards

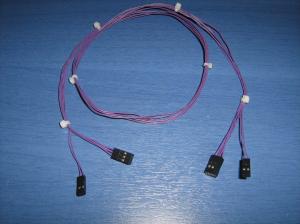

A 6-pins connector is used for the 5-wire interface. The SPI needs a data and a clock wire. One wire is the ground wire, one is for the reset signal and the last one is for the SYNC signal of the chip. Here is the wire with the connectors:

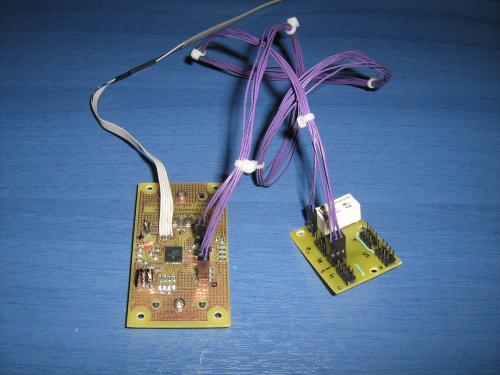

And here are the boards interfaced with this wire:
1-2-3 TEST: 2 problems, two solutions, and the switch works! (July 15)
This is the testing setup of the USB lock. It works just fine!
I was quite tired and i decided to go to sleep, so i turned off the 3 CCFL lamps above my desktop... And disaster occurred! The EMI from the CCFL drove the switch nuts! No interference was detected on the PIC, but the ADG714 received a reset signal shutting down the USB ports. I tried once more and the problem occurred again.
I know this problem, i' ve faced it before. fluorescent lamps with the old ballasts can cause a mayhem to the surrounding area with their EMI emissions. I suppose that if the Nabuchodonosor had no EMP, Morpheus would have used these ballasts to kill the Matrix guardians...
The long interface wire acts like an antenna, and since the PIC has only outputs to this wire and the ADG714 has only inputs, the EMI have obvious results only to the ADG chip. The simplest method in such occasions is to use a ferrite toroid core and wind the wire once around this core.
 |
 |
 |
 |
| ... 3 CCFL lamps can cause a mayhem with their EMI emissions! |
A toroidal ferrite core is the simplest solution to reduce EMI from long wires |
One turn is enough |
The toroid is very close to the switc-board |
After several tests i was finally sure that the EMI from the fluorescent lamps won't be a problem any more...
