Safety relayAuthor
Andrea
April 5, 2012

Two button control relays are used in industrial safety in order to keep the operator's hands away from the dangerous parts of the machine. This feature is often required by the safety regulations.
Just for fun I designed and tested a curcuit that activates a relay by pressing two buttons at the same time, with a tolerance of 0,5 seconds. The relay is supposed to work instead of the pedal switch.
Once the circuit is supplied the input voltage (pin 2/6) is high, so the output keeps the low level.
By pressing one button the second transistor is supplied by 560Kohm, too high; so the collector keeps almost off and the input voltage is more than 8 Volts.
If the second button is not pressed within 0,5 seconds, Q1 turns on and prevents Q2 from activating. So the operation has to be repeated.
The relay turns off after few seconds, depending on the value of C2. So the operator has to release the buttons and press them again.
The switches connected in series are supposed to prevent the relay from activating in case of component failure.
For a better safety we may use two relays and a led which alerts the operator if one relay gets stuck on.
This is just an hobby project, do not use it for industrial safety.

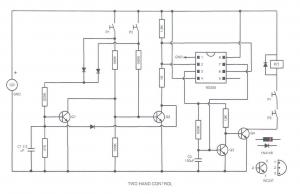

Two hand control safety relay


Note: 1,9K and 1K resistors should be 1%.
