High Efficiency Battery Boost Regulator using the MCP1640Author
Giorgos Lazaridis
February 8, 2012

PAGE 3 of 4 - Output Voltage Set Power Efficiency - Dissipation


Output Voltage Set
The voltage adjustment is set by the voltage divider R1-R3 in my schematic circuit. Microchip labels these resistors as RTOP (for R1) and RBOT (for R3). Here is the formula that Microchip provides:






VFB is always 1.21V. Keep RBOT (R3) close to 300K or so. You can use the above formula to calculate RTOP (R1). Here are two examples provided by Microchip for 3.3 and 5V outpus:

Example 1:
VOUT = 3.3V
RBOT = 309K
RTOP = 533.7K

Example 2:
VOUT = 5.0V
RBOT = 309K
RTOP = 967.9K



Maximum Output Voltage

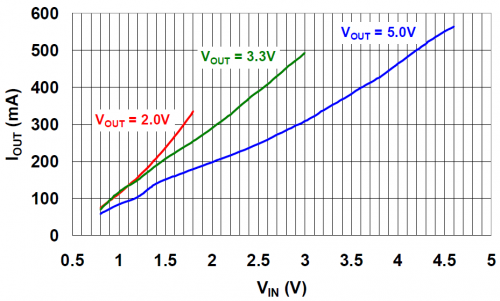

There is a device limit output voltage which depends upon the input voltage and the output current. The following characteristics shows this relation for 3 output voltages, 2V, 3.3V and 5V:







So, so ensure reliable operation at 3.3V output 100mA, the input voltage should not fall bellow 0.9 Volts.

Efficiency and Power Dissipation
The efficiency of the system mostly depends on the input and output voltage and the current. Due to the mosfet switching use, the main cause of losses are resistive loses, so a bigger gap between input and output voltages will result in less efficiency. Another efficiency factor is the inductor resistance. Larger inductors have less resistance and thus better efficiency, but they come in bigger and more expensive packages. Also, poor capacitors with high leaking current have negative effect on efficiency.

Here is the efficiency to output current characteristics that Microchip provides:




The output voltage is 3.3V for all situations. It is obvious that the efficiency is less when the input voltage is lower.

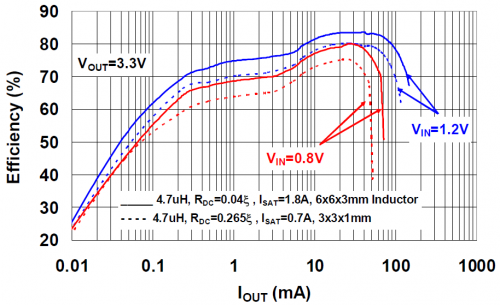

The following graph shows how a sophisticated inductor selection can lead to better efficiency.




The first inductor (1.8A ISAT) has results in betetr efficiency than the second inductor (0.7A ISAT) due to the fact that it has mush less resistance


And here is how a good capacitor selection results in the overall efficiency:






To calculate the power dissipation of the system, first you need to estimate the efficiency. You can use the first characteristics (efficiency VS Output Current) to have an approximation on the system's efficiency. Then use the following formula to get the power dissipation:







Read the next page with the PCB design considerations and drawings

Continue reading. Click here to go to the next page >>>.
 OR click here to view the presentation.



Comments

  Name

  Email (shall not be published)

  Website

Notify me of new posts via email


Write your comments below:
BEFORE you post a comment:You are welcome to comment for corrections and suggestions on this page. But if you have questions please use the forum instead to post it. Thank you.




  • At 12 January 2015, 21:21:09 user 123 wrote:   [reply @ 123]
      • VFB is always 1.12V -> should be corrected to 1.21 V
      Data Sheet MCP 1640

  • At 9 July 2013, 16:29:40 user Angel G. wrote:   [reply @ Angel G.]
      • I experimented today with a MCp1640 and also got around 140ma over range of Vin=2.7 .. 4.5V.
      Divider is set so the output to be 5.5V, but it can't get over 4V.
      I think there's a bug in the chip, because: When I disconnected the load (a resistor) & powered up w/o load. It managed to hold 5.5V with over 200ma to the resistor. So...

  • At 15 February 2013, 22:11:29 user Giorgos Lazaridis wrote:   [reply @ Giorgos Lazaridis]
      • @Ben Choy It is designed for 3.3 and 5 volts, but i'm quite sure it can do well at 1.2 as well. Or you can use 2 diodes to drop with little power loss.

  • At 14 February 2013, 4:35:19 user Ben Choy wrote:   [reply @ Ben Choy]
      • Just wonder, can this be adopted as a laser LED PSU, since I have a need to drive an laser LED on/off with logic voltage. The laser should take about 200mA to 300mA @ 1.2V.
